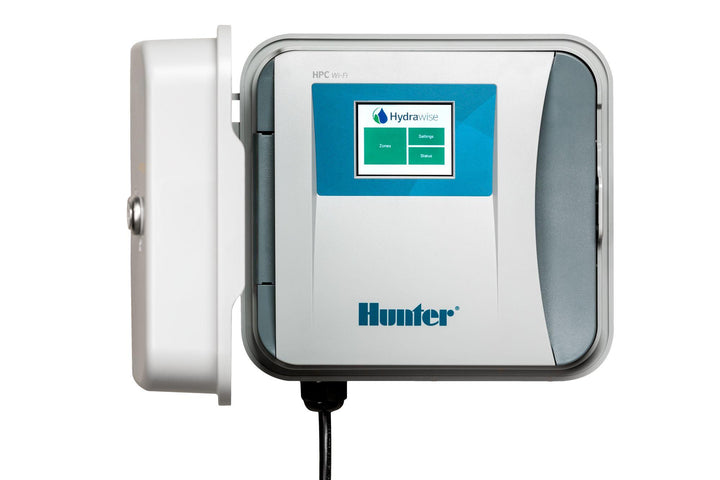

Hunter HPC Controller

This smart and flexible control solution combines the modularity of the popular Pro-C® Controller with the power of Hydrawise® Software.

Key Benefits

• Number of stations: - Conventional wiring from 4 to 23 stations - Hybrid EZ Decoder option up to 32 total stations (28 stations maximum if two-wire only)
• Standard programming option allows for 6 independent irrigation programs and 6 start times per program
• 2 sensor inputs available for use with any Clik sensor or HC Flow Meter
• 1 P/MV output for pump start relay and master valve activation
• Wi-Fi enabled for quick connection to Hydrawise Software

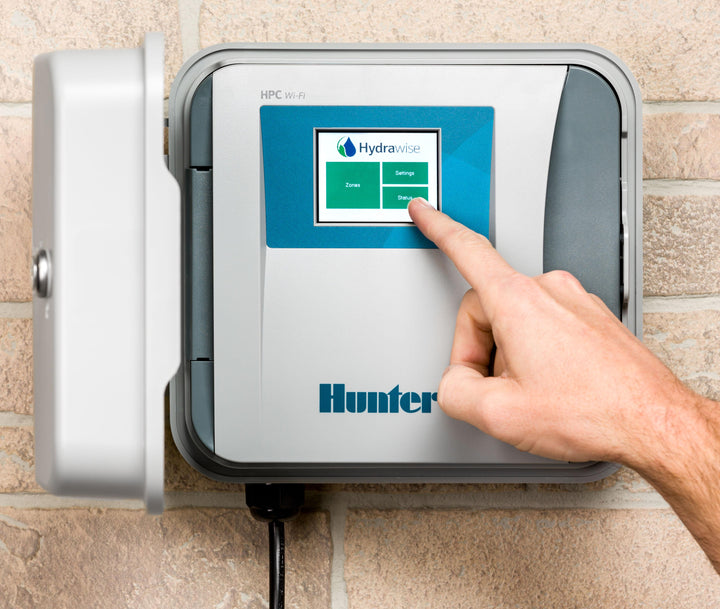

• 2¾" full-color touchscreen display for Wi-Fi setup, zone testing, and offline programming at the control panel
• Built-in milliamp sensor for wire fault detection and alerts

Operating Specifications

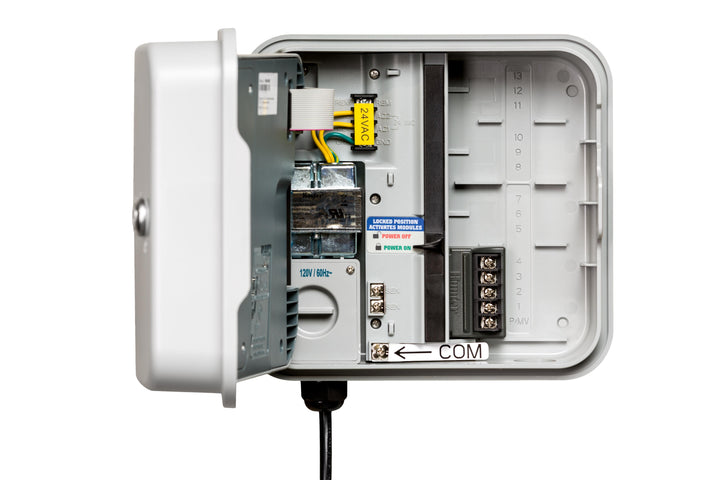

• Transformer input: 120 VAC
• Transformer output (24 VAC): 1 A
• Controller maximum current draw: 0.8 A
• Station output (24 VAC): 0.56 A P/MV output (24 VAC): 0.28 A
• 2.4 GHz (only) Wi-Fi router compatible, 802.11 b/g/n 20 MHz
• Supported security protocols: WPA/WPA2 Personal (only), TLS, SSL
• Approvals: IP44, UL, cUL, FCC, CE, UKCA, RCM, ISED
• Warranty period: 2 years

User-Installed Options

• Wireless HC Flow Meter option permits wireless flow monitoring for Hydrawise enabled systems
