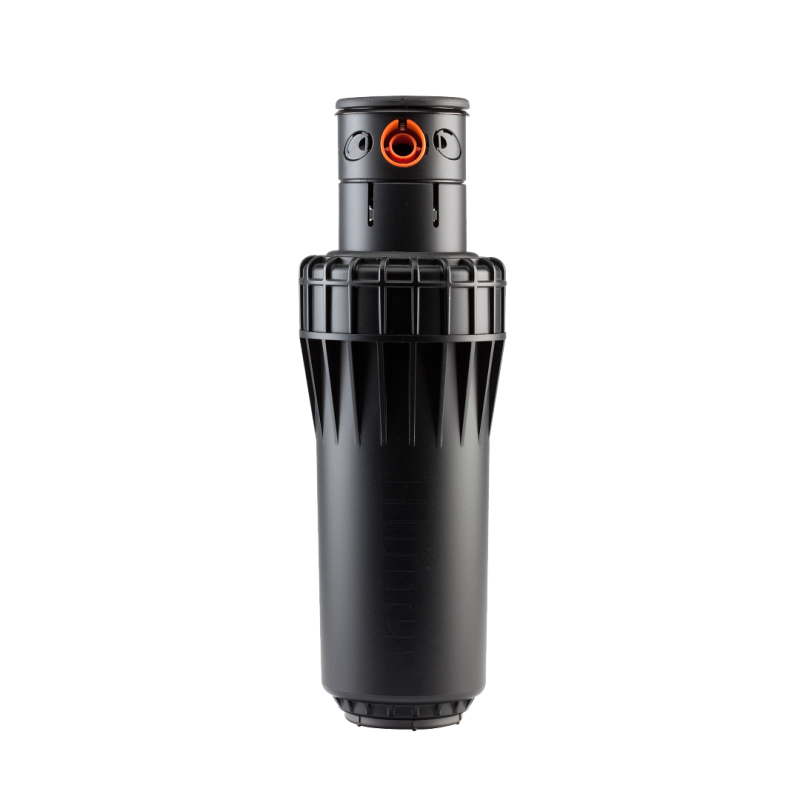

The robust I-90 Rotor is built for long-distance natural turf applications in large parks, open spaces, and sports fields.

Key Benefits

• 1 1/2" BSP Female Bottom Inlet
• Exclusive PressurePort™ Technology creates exceptional nozzle uniformity
• Forward-facing triple nozzles (I-90) or opposing triple nozzles (I-90-ON) create uniform nozzle profiles in part- and full-circle applications

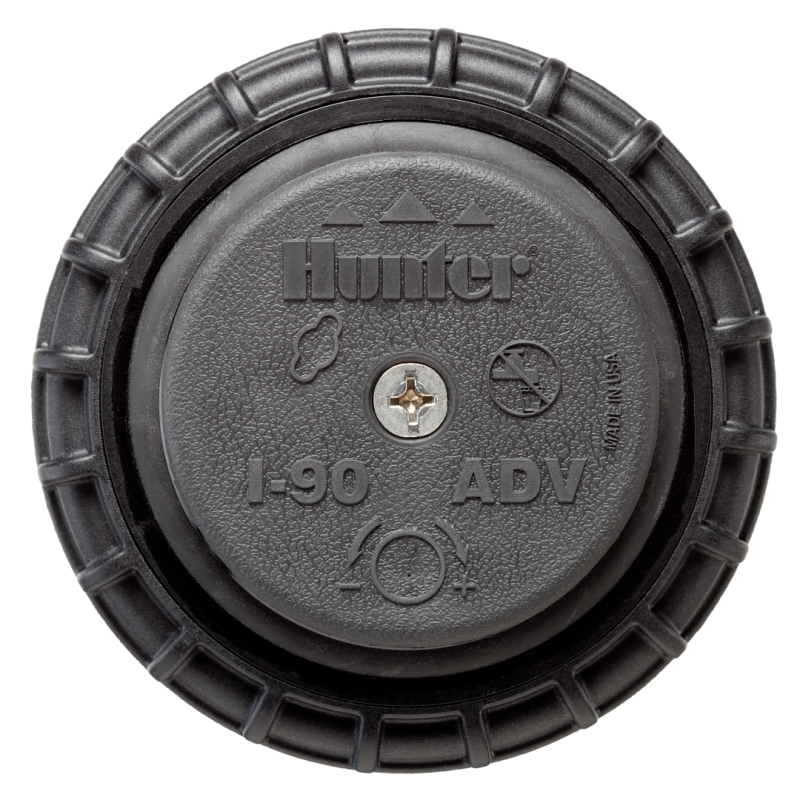

• QuickCheck™ Arc Mechanism for fast arc adjustment and review of the arc setting
• Part- and full-circle in one model provides flexible installation options and decreases inventory (I-90)
• Drain Check Valve prevents low-head drainage (up to 7' of elevation)

Operating Specifications

• Nozzle trajectory: 22.5º
• I-90 nozzle choices: 8
• Radius I-90 ADV: 66' to 97'
• Radius I-90 36V: 73' to 103'
• Flow I-90 ADV: 29.5 to 83.8 GPM
• Flow I-90 36V: 30.5 to 83.3 GPM
• Recommended pressure range: 80 to 120 PSI
• Operating pressure range: 80 to 120 PSI
• Precipitation rate: 0.75 in/hr approximately
• Warranty period: 5 years

Factory-Installed Options

• Reclaimed water ID

User-Installed Options

• Prefabricated PVC HSJ Swing Joints Upper Snap Ring Assembly P/N 450105
• Rubber Cover Kit  P/N 959300SP
• Turf Cup Kit P/N 959400SP
  • No-dig servicing
  • No-dig arc adjustments
  • Quick-release turf cup assembly
  • Threads in cup lock/retain the turf
