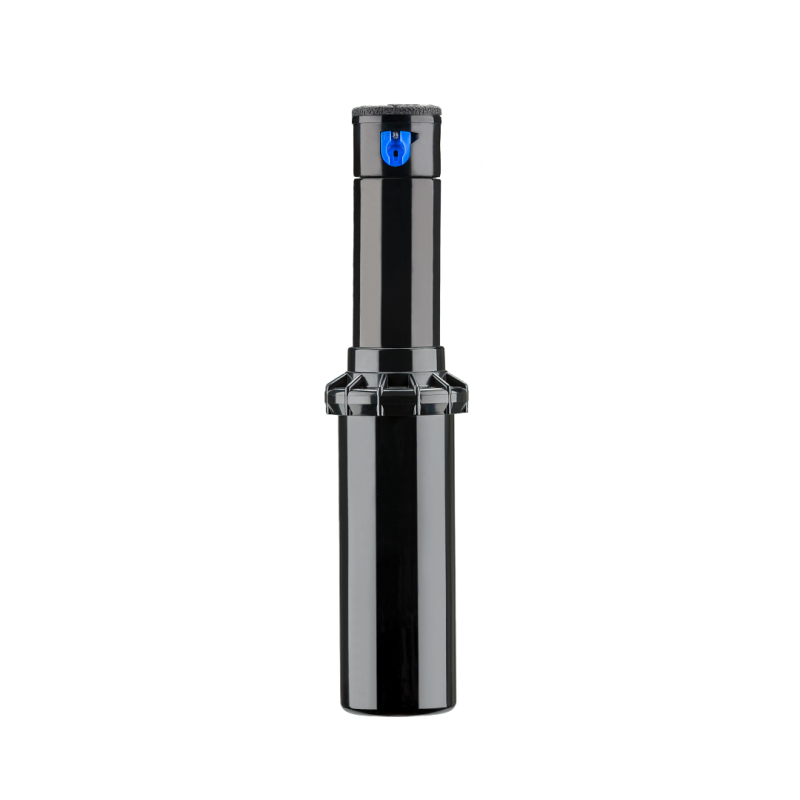

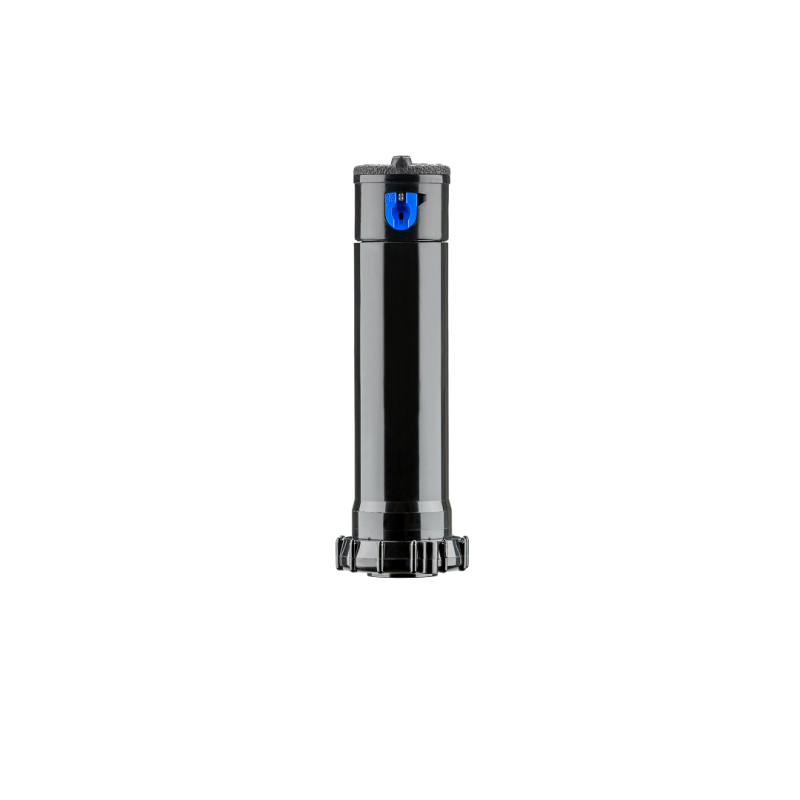

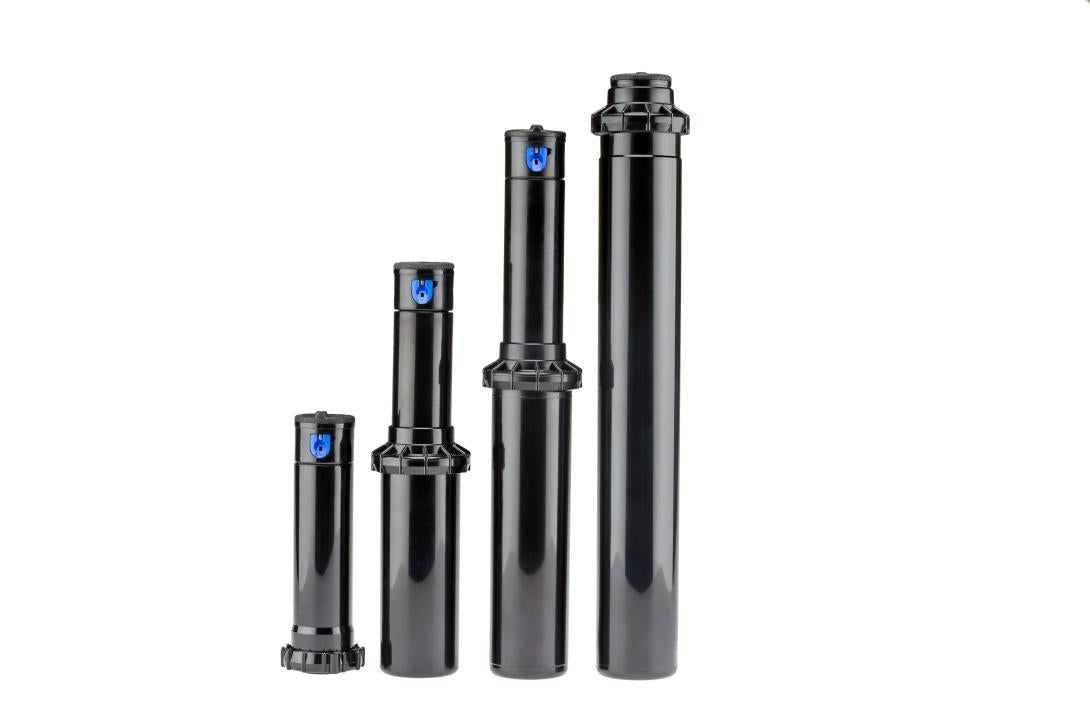

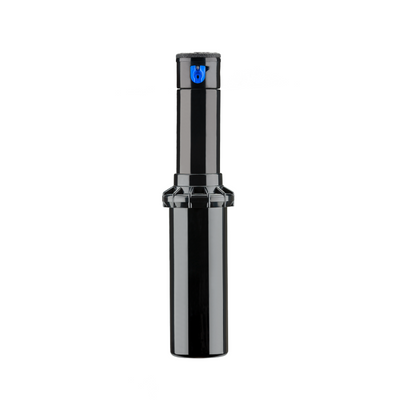

The PGP Ultra raises the bar for rotor technology with powerful features developed over three decades of research, customer feedback, and lab testing.

Key Benefits

• 3/4" BSP Female Inlet
• Patented automatic arc return feature returns the turret back to the original arc pattern if vandalized; adjustable arc from 50° to 360°
• Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel Part- and full-circle in one model for flexibility across landscapes and reduced inventory
• Headed and slotted setscrew allows radius adjustment with a Hunter wrench or flat-blade screwdriver
• Flat-top nozzles allow fast, easy insertion
• QuickCheck™ arc mechanism for fast arc adjustment

Operating Specifications

• Nozzle choices: 34
• Radius: 17' to 46'
• Flow: 0.36 to 14.8
• GPM Recommended pressure range: 25 to 70 PSI
• Operating pressure range: 20 to 100 PSI
• Precipitation rate: 0.4 in/hr approximately
• Nozzle trajectory: standard = 25°, low-angle = 13° Nozzle racks: 1.5 to 8.0 blue, 2.0 to 4.5 low-angle grey, 0.50 to 3.0 black, 6.0 to 13.0 green, MPR-25, MPR-30, MPR-35
• Warranty period: 5 years

Factory-Installed Options

• Drain check valve (up to 10' of elevation)
• Reclaimed water ID Blue #1.5–4.0 nozzles

User-Installed Options

•  Drain check valve (up to 3' of elevation) PGP-04 only (P/N 142300SP)
• HSJ-0 prefabricated ¾" PVC swing joint

Click here for Hunter PGP Ultra Rotor Data Sheet
