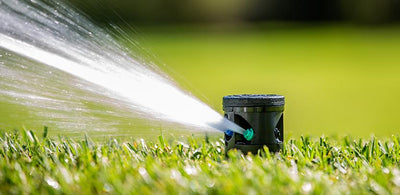

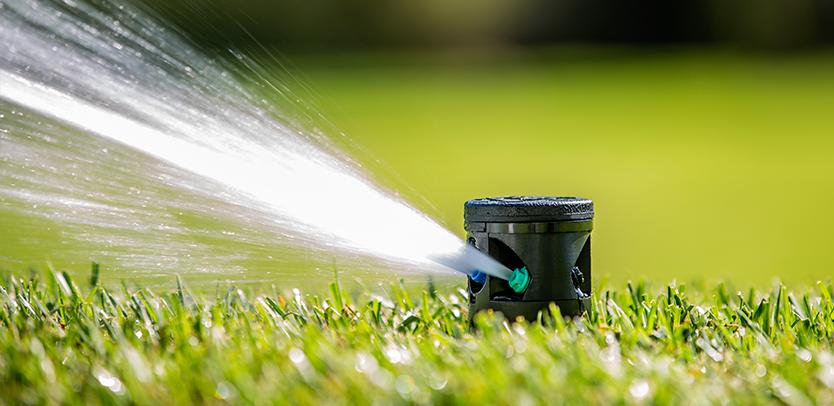

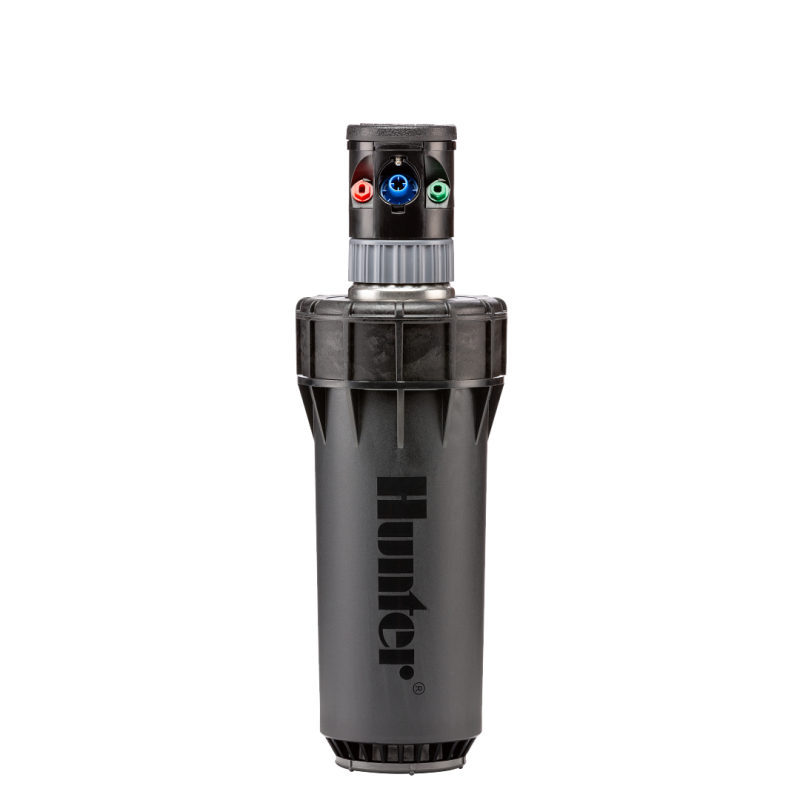

The highly versatile and efficient I-80 Rotor is the first commercial sports turf rotor with no-dig Total-Top Serviceability.

Key Benefits

• 1 1/2" BSP Female Bottom Inlet
• Exclusive Total-Top-Service (TTS) design provides convenient no-dig servicing
• Exclusive PressurePort™ Technology creates exceptional nozzle uniformity
• Forward-facing triple nozzles (I-80) or opposing triple nozzles (I-80-ON) create uniform nozzle profiles in part-and full-circle applications
• QuickCheck™ Arc Mechanism (I-80) for fast arc adjustment and review of the arc setting
• QuickSet-360 Arc Mechanism (I-80) converts adjustable arc rotor to full-circle in an instant Part- and full-circle in one model provides flexible installation options and reduces inventory (I-80)
• Ratcheting stainless steel riser allows setting of right-side fixed arc alignment to the landscape without rotor disassembly
• Drain check valve prevents low-head drainage (up to 5' of elevation)

Operating Specifications

• I-80
  • Standard 22.5° nozzle choices: 7
  • Radius: 65' to 94' Flow: 20.2 to 59.6 GPM
  • Pressure range: 50 to 100 PSI

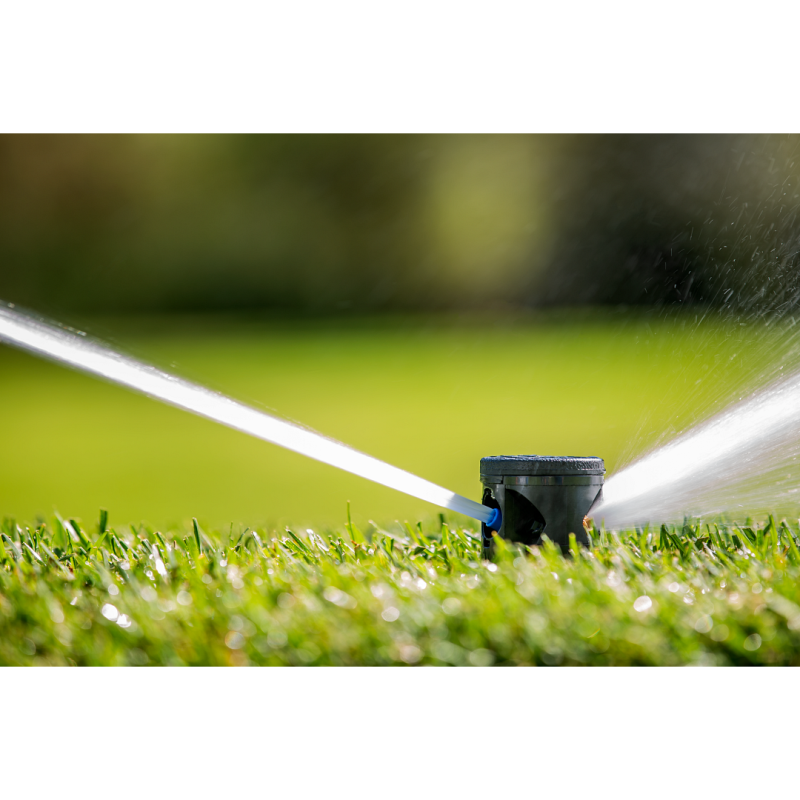

• I-80-ON
  • Standard 22.5° nozzle choices: 7
  • Radius: 63' to 97' Flow: 21.6 to 58.5 GPM
  • Pressure range: 65 to 100 PSI
• All I-80 Rotors are pressure-rated at 150 PSI
• Warranty period: 5 years

User-Installed Options

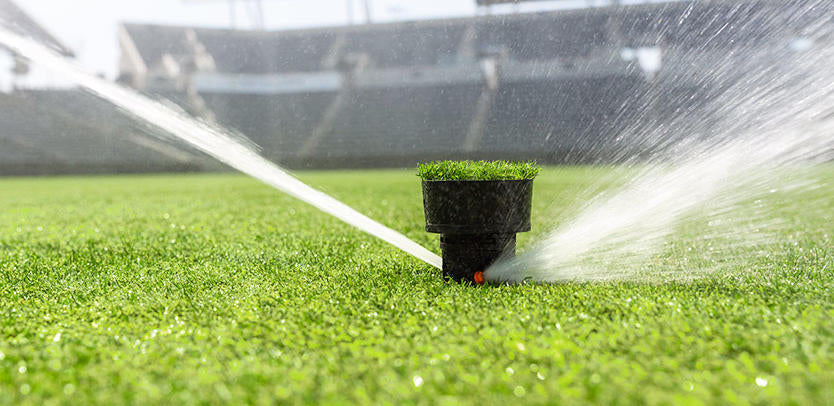

• Turf Cup Kit P/N: 959400SP
  • No-dig servicing of riser assembly
  • No-dig arc adjustments
  • Quick-release turf cup assembly
  • Threads in cup lock/retain the turf
• Reclaimed water ID P/N: 450105
• Rubber Cover Kit P/N: 959300SP
• HSJ prefabricated PVC Swing Joints HSJ-3-3-2-2-12 HSJ Swing Joint, 1½" heavy-duty swing joint, 1½" male NPT inlet, 1½" male NPT outlet, single top-out, 12" lay arm
• HSJ-3-3-2-2-18 HSJ Swing Joint, 1½" heavy-duty swing joint, 1½" male NPT inlet, 1½" male NPT outlet, single top-out, 18" lay arm HSJ-3-3-2-4-12 HSJ Swing Joint, 1½" heavy-duty swing joint, 1½" male NPT inlet, 1½" male NPT outlet, triple top-out, 18" lay arm
• HSJ-3-3-2-4-18 HSJ Swing Joint, 1½" heavy-duty swing joint, 1½" male NPT inlet, 1½" male NPT outlet, triple top-out, 12" lay arm

Click here for Hunter I-80 Rotor Data Sheet
