LinkTap Q1 Wireless Water Timer (4 Zone)

SKU: LT0008

LinkTap Q1 Wireless Water Timer (4 Zone) (requires gateway)

Key Features

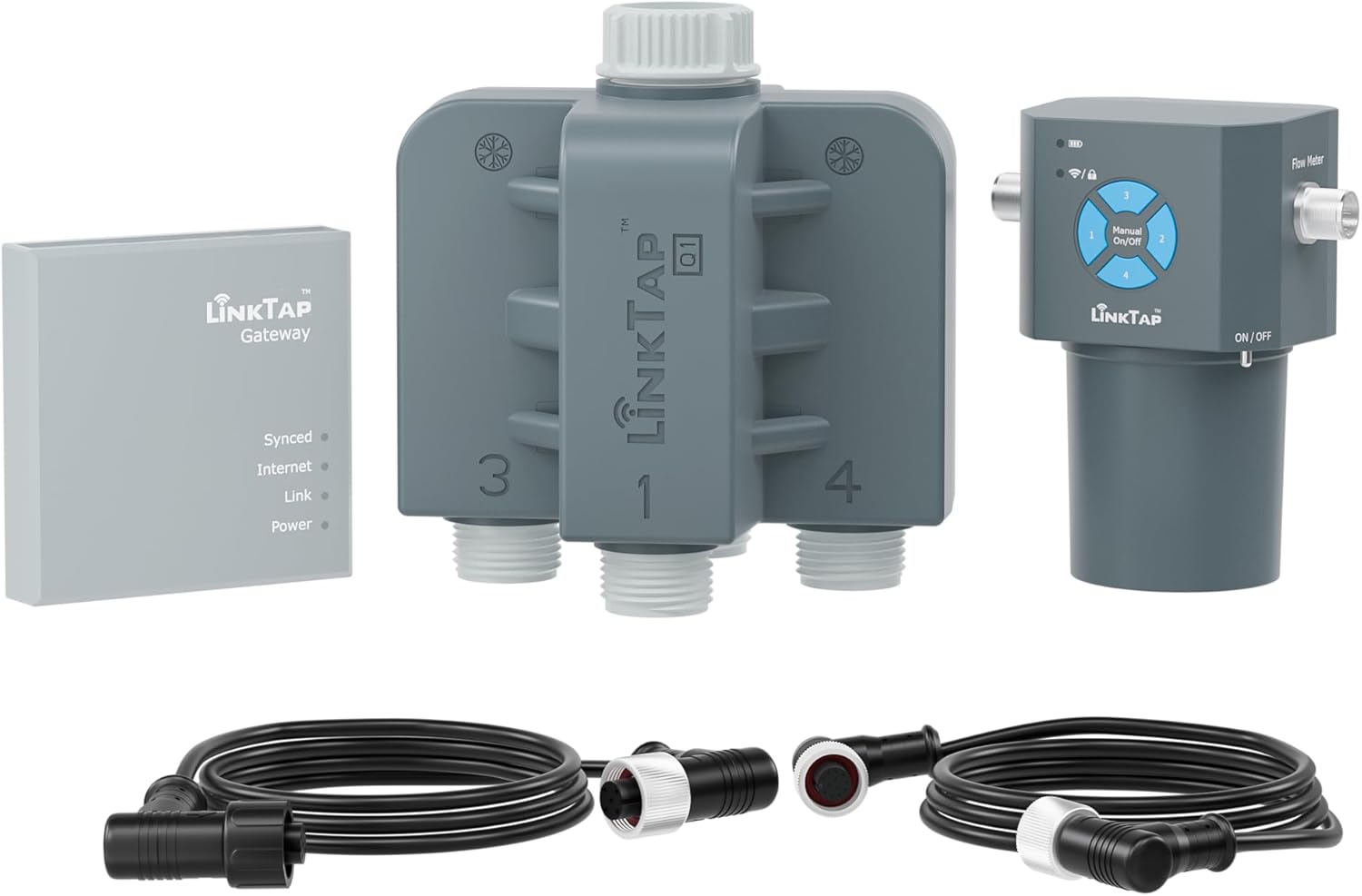

  • Attention: To use LinkTap water timers, a LinkTap Gateway (not included) is required. One Gateway can control up to 15 LinkTap watering devices (Q1, D1, T1, G2S, G1S, ValveLinker, or any combination of them). Easily create a fully integrated irrigation system—all controlled from a single app

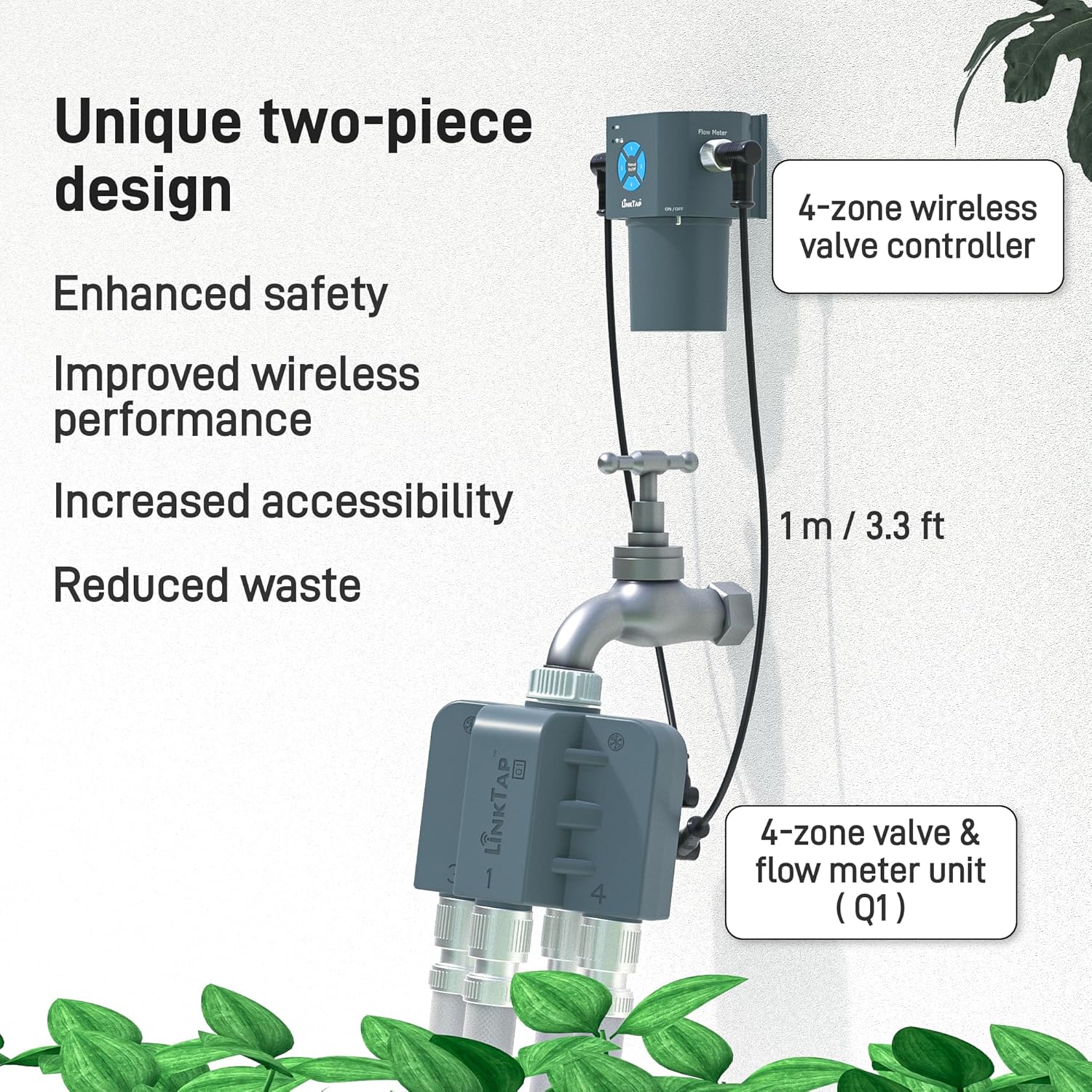

  • Smart 4-Zone Control – The two-piece design includes a 4-zone smart sprinkler controller and a separate valve unit with 4 built-in flow meters. Independently control and monitor water usage across multiple garden irrigation zones with precision

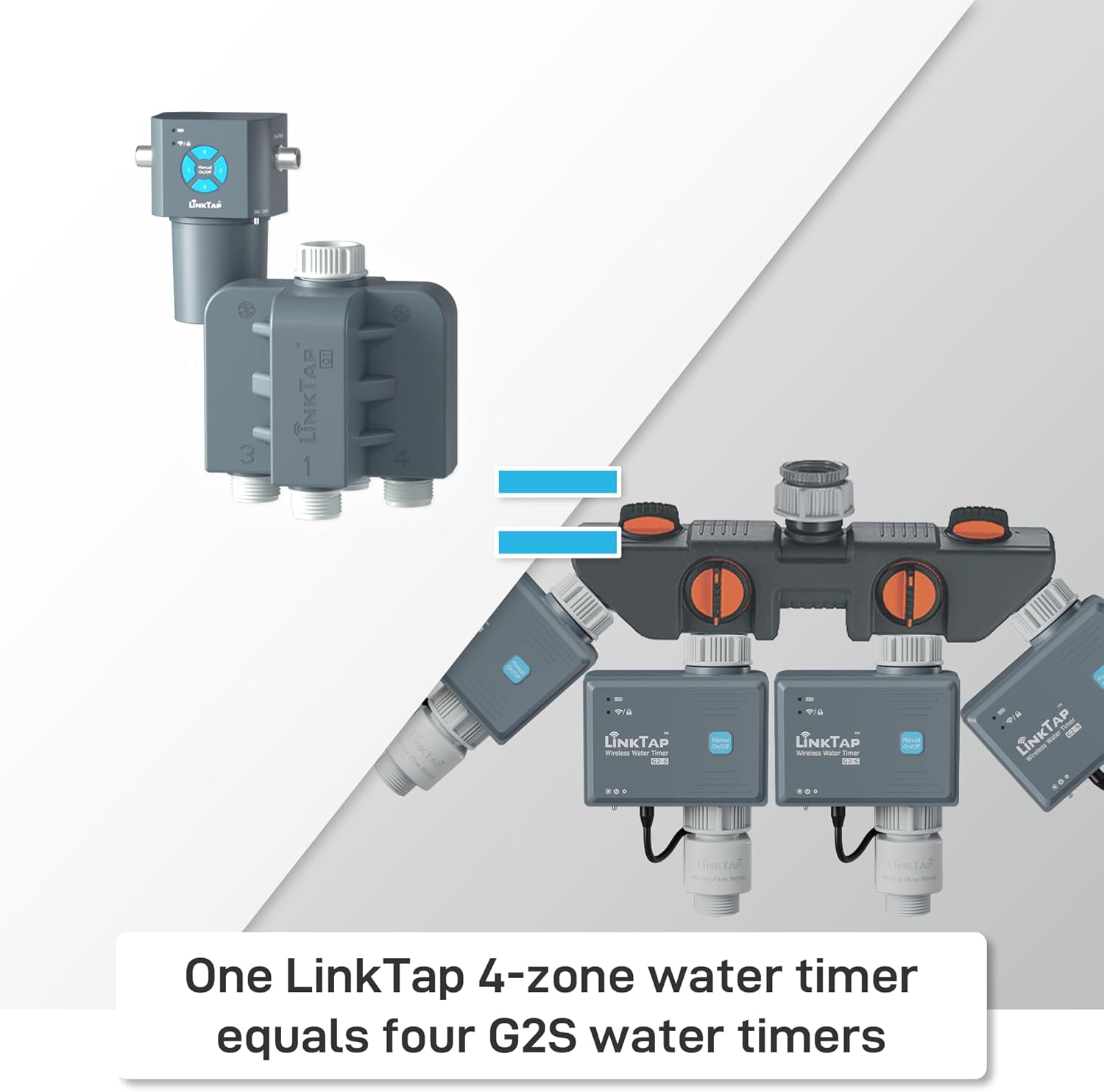

  • All G2S Features, Now with More Power – The LinkTap Q1 inherits all the advanced features of the G2S, including weather-adaptive watering, real-time fault detection, and flexible schedules—enhanced with multi-zone control and improved scalability
  • Superior Wireless Coverage – Powered by our proprietary Zigbee protocol, the Q1 offers a more stable and extended range than Wi-Fi hose timers. For large yards or complex layouts, add the LinkTap Extender to build a robust, self-healing mesh network
  • Flexible Power Options – Power your smart irrigation system the way you want. Use the standard 9V batteries or upgrade with the LinkTap DC Converter (optional, sold separately) to connect a solar panel or AC-DC adapter
  • Durability & Leak Prevention – A lightweight valve unit reduces stress on the inlet collar, minimizing the risk of leaks and slippage—even after years of use
  • Smart Anti-Freeze Protection: Automatically opens the valve when temperatures drop below a preset threshold, preventing ice buildup and reducing the risk of pipe damage
  • Optimized Wireless Signal – Choose from standard 1m or optional 3m / 10m cables to place the controller in the best position for superior wireless performance
  • Modular & Repairable Design – Unlike traditional all-in-one timers, the LinkTap Q1 lets you replace individual components instead of discarding the whole unit, reducing waste and saving money

 Specifications

  • Watering cycles per day: up to 100 per zone
  • Watering duration per cycle: 3 sec to 23 hours 59 mins 59 sec
  • Operating water pressure range: 0.02-0.8 Mpa (3-116 psi)
  • Water flow rate: >28 LPM @ 0.8 Mpa (>7.4 GPM @ 116 psi)
  • Flow meter measurement range: 0.7 to 40 LPM (0.18 to 10.6 GPM) with a measurement error of ± 5%

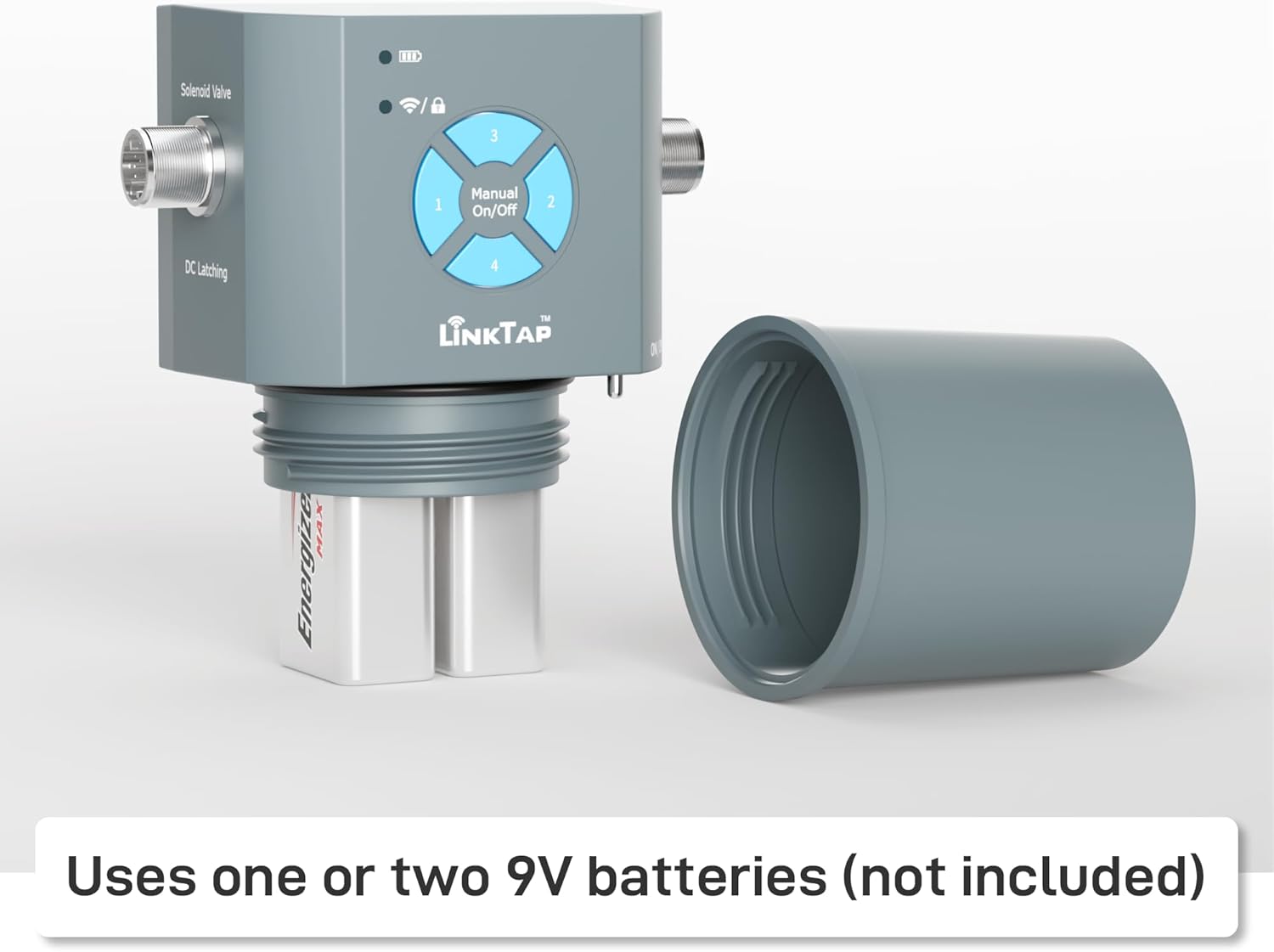

  • ValveLinker power: one or two standard 9-volt alkaline, lithium, or rechargeable lithium batteries
  • ValveLinker case dimensions: 11.1 x 6.8 x 5.9 cm (4.37 x 2.68 x 2.32 inch)

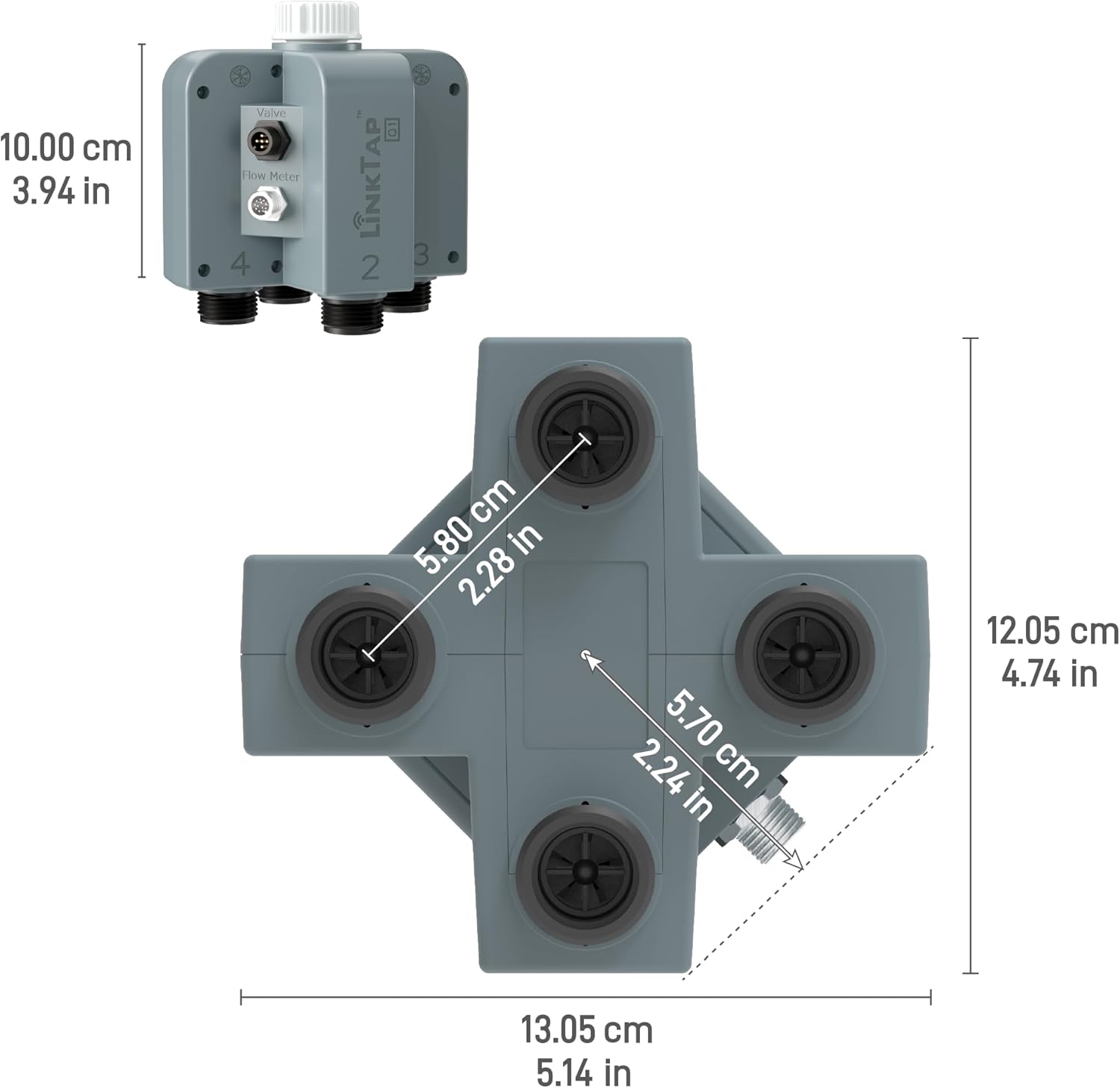

  • Q1 case dimensions: 13.0 x 12.0 x 10.0 cm (5.12 x 4.72 x 3.94 inch)
  • Valve and flow meter connection cables: 1 m (3.3 ft), detachable
  • Wireless technology: Zigbee
  • Wireless operating spectrum: 2.4GHz ISM
  • Wireless transmission distance: up to 200m (650 ft)+
  • Network security: 256-bit encryption
  • Number of TapLinkers & ValveLinkers per Gateway: 15
  • Number of Gateways per user account: 20
  • Waterproof rating for ValveLinker: IP66
  • RCM, FCC, IC, UKCA, CE and RoHS approved
+ Actual ranges may vary depending on environmental conditions, building materials, etc. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is unique.
