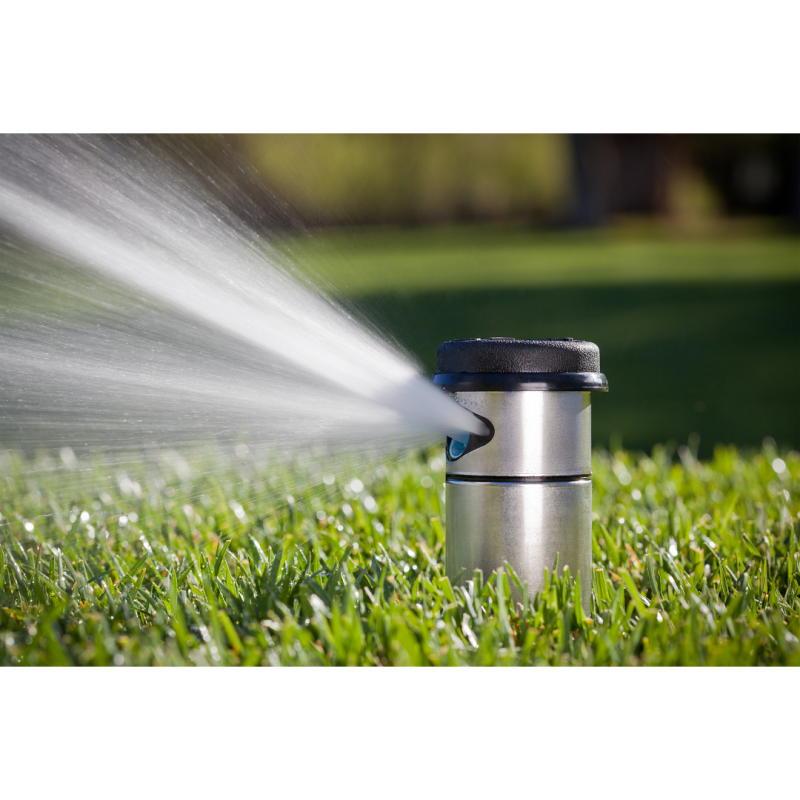

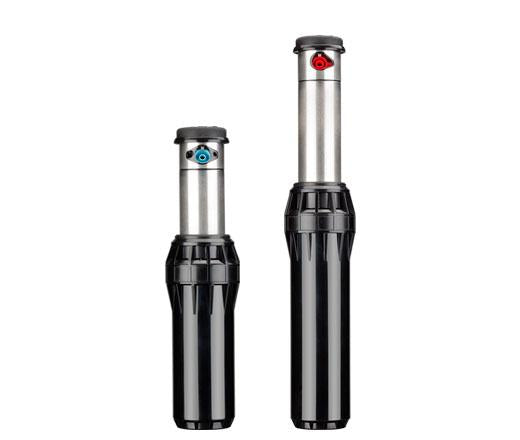

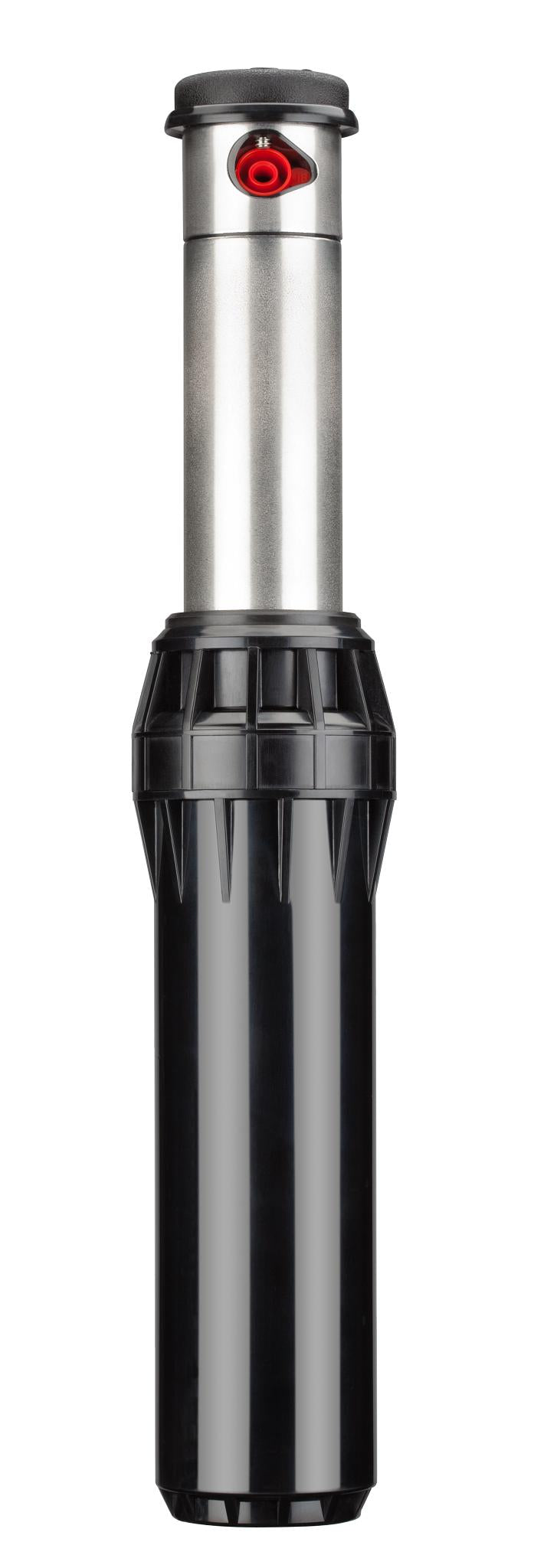

Hunter I-40 Rotor

The I-40® rotor has a comprehensive list of upgraded features that make it the top choice for demanding, large turf projects.

 Key Benefits

• 1" BSP Female Inlet
• Patented automatic arc return feature returns the turret back to the original arc pattern if vandalized; adjustable arc from 50° to 360°
• Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel Part- and full-circle in one model for flexibility across landscapes and reduced inventory
• Color-coded nozzles make identification easy

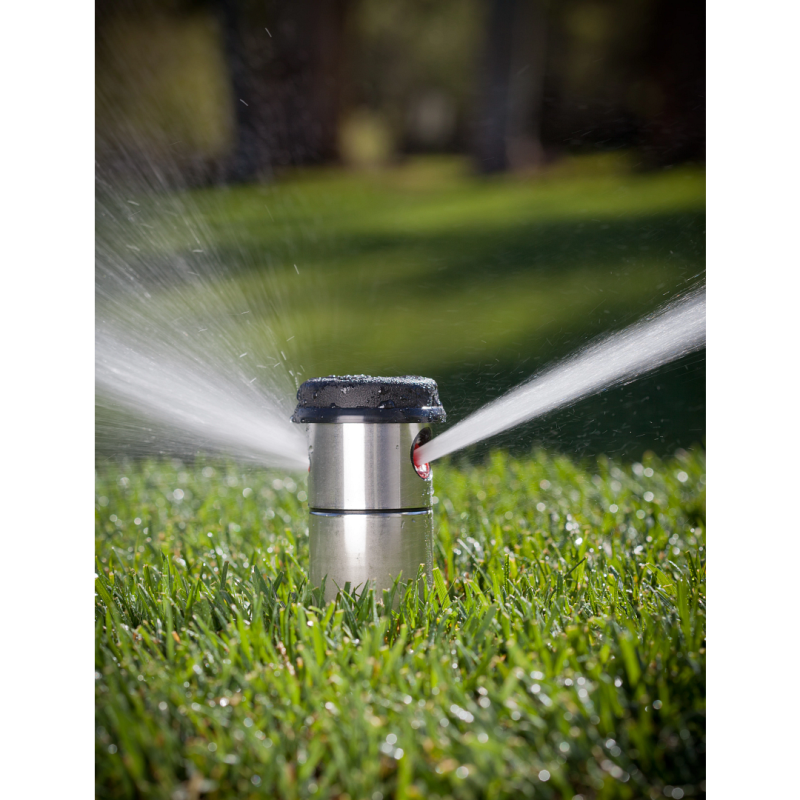

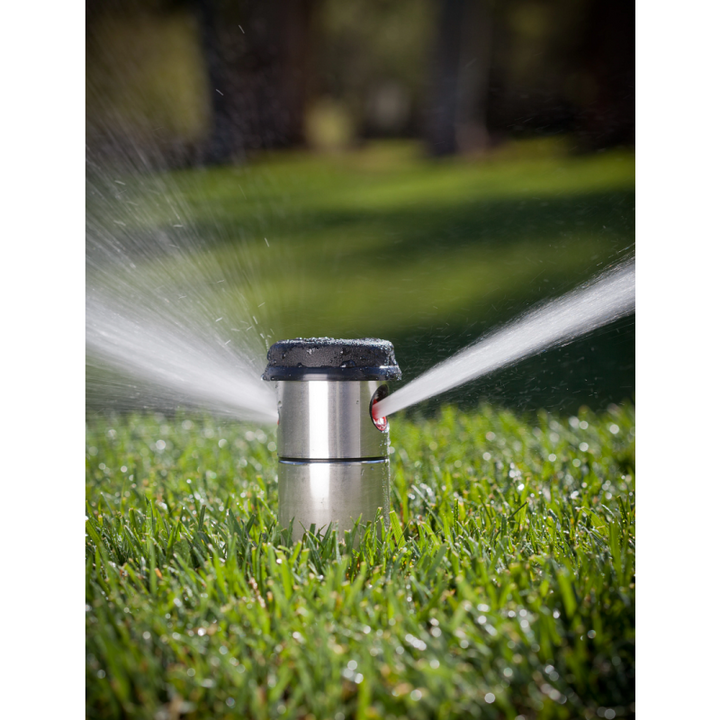

• Available opposing nozzle model for even watering in full-circle applications (I-40-ON model)
• Drain Check Valve prevents low-head drainage (up to 15' of elevation)

Operating Specifications

• Nozzle choices: 12
• Radius I-40: 44' to 69'
• Radius I-40-ON: 52' to 76'
• Flow I-40: 7.6 to 29.5 GPM
• Flow I-40-ON: 13.0 to 33.7
• GPM Recommended pressure range: 40 to 100 PSI
• Operating pressure range: 40 to 100 PSI
• Precipitation rate: 0.4 in/hr approximately
• Nozzle trajectory: standard = 25°
• Warranty period: 5 years

Factory-Installed Options

• Options Reclaimed water ID
• High-speed rotation

User-Installed Options

• HSJ-1 prefabricated 1" PVC Swing Joint

Click here for Hunter I-40 Rotor Data Sheet
