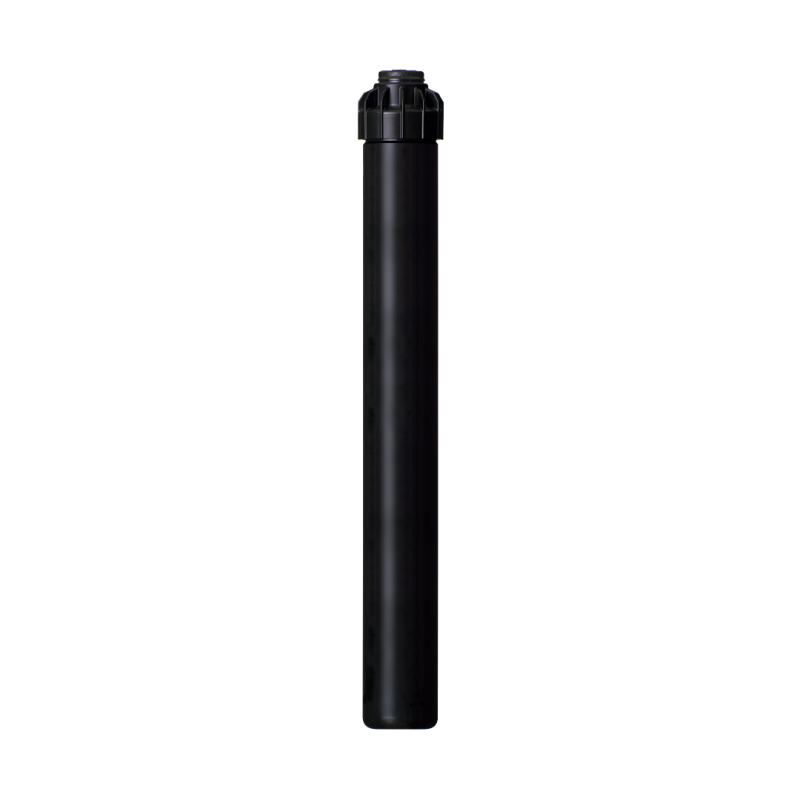

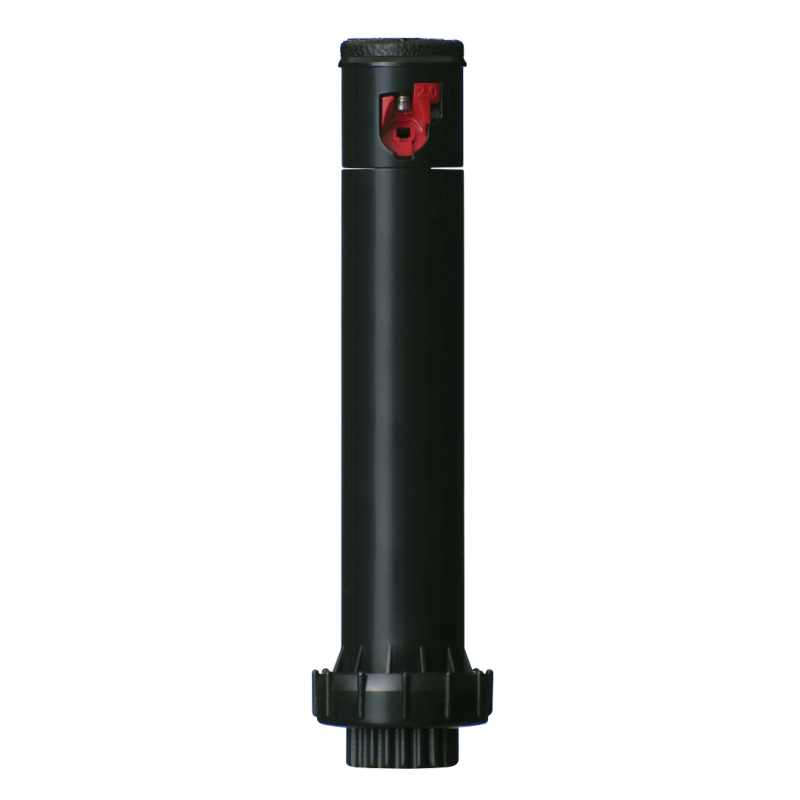

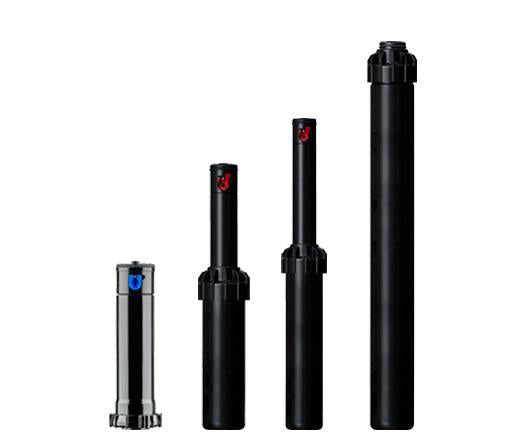

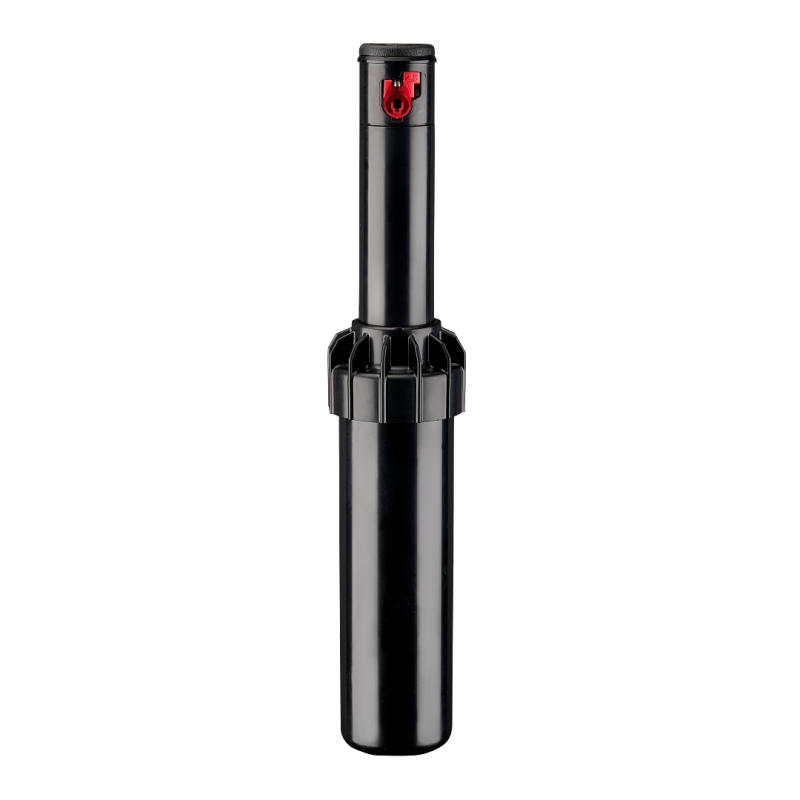

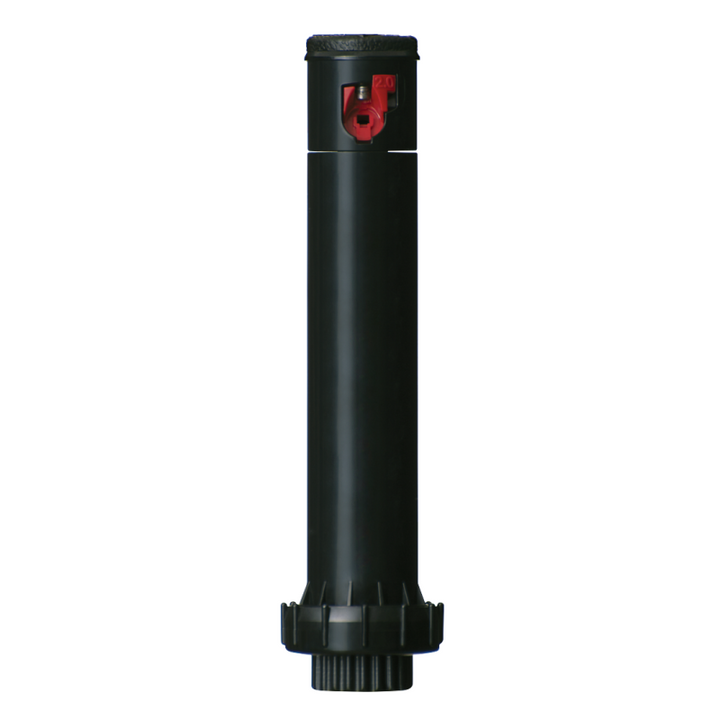

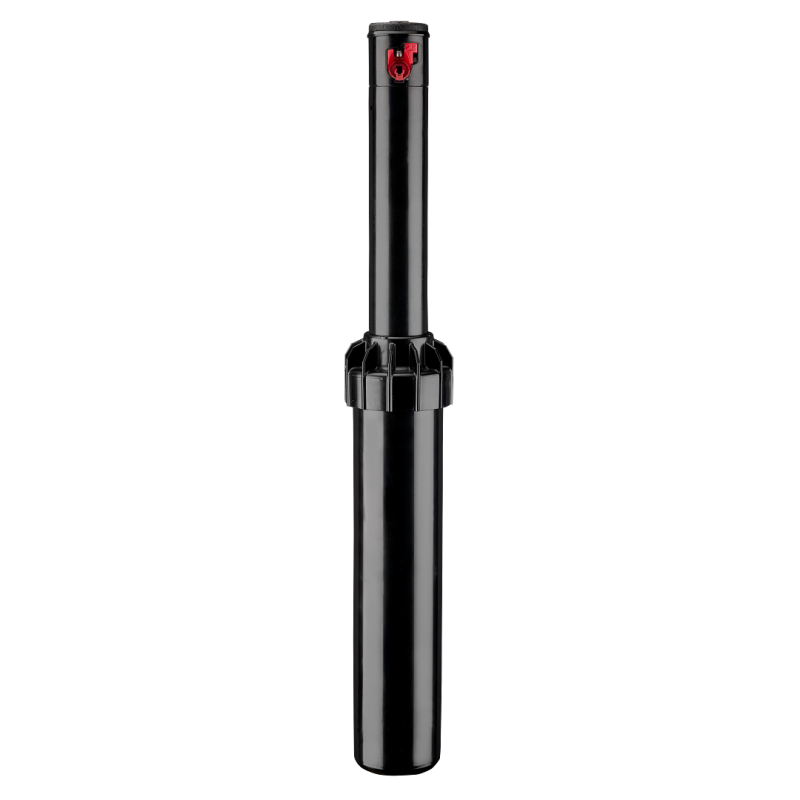

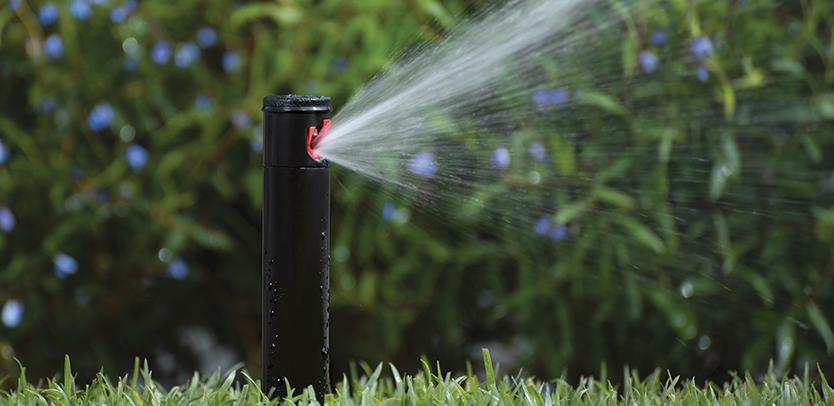

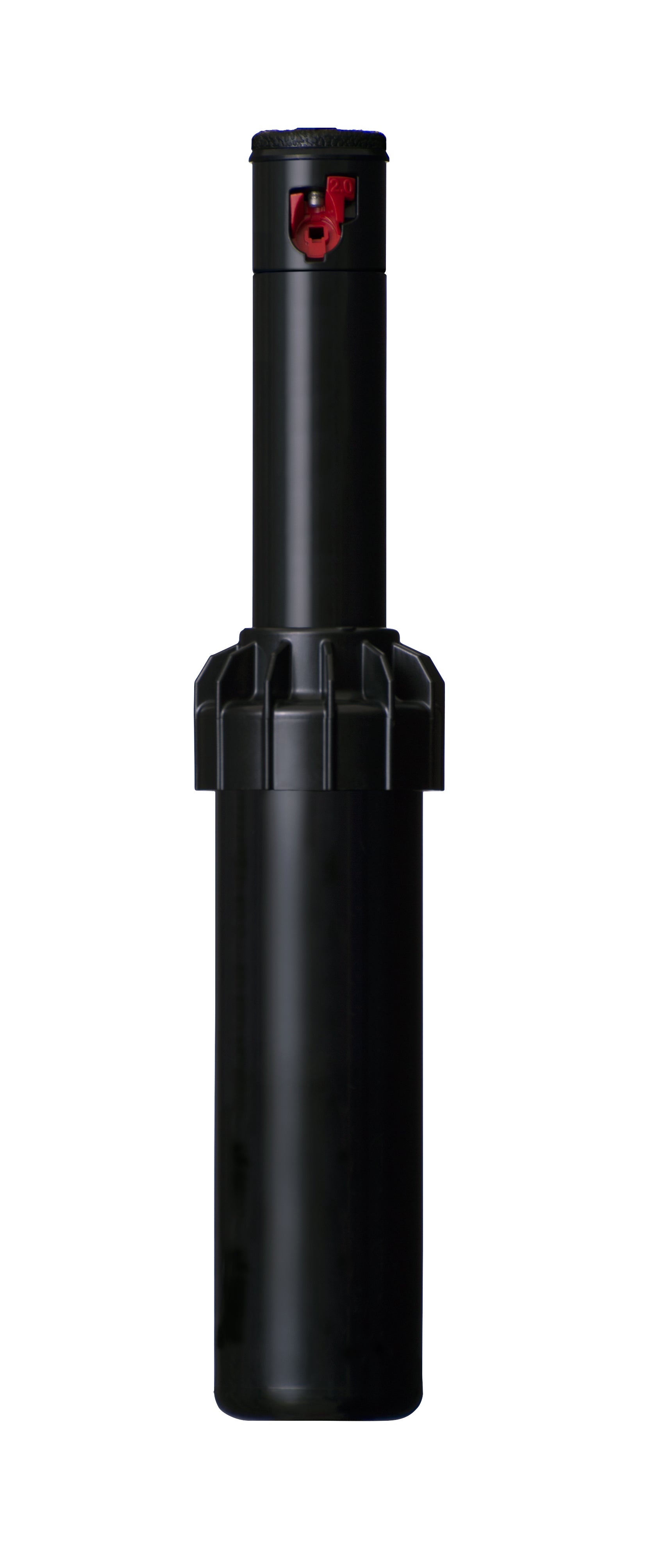

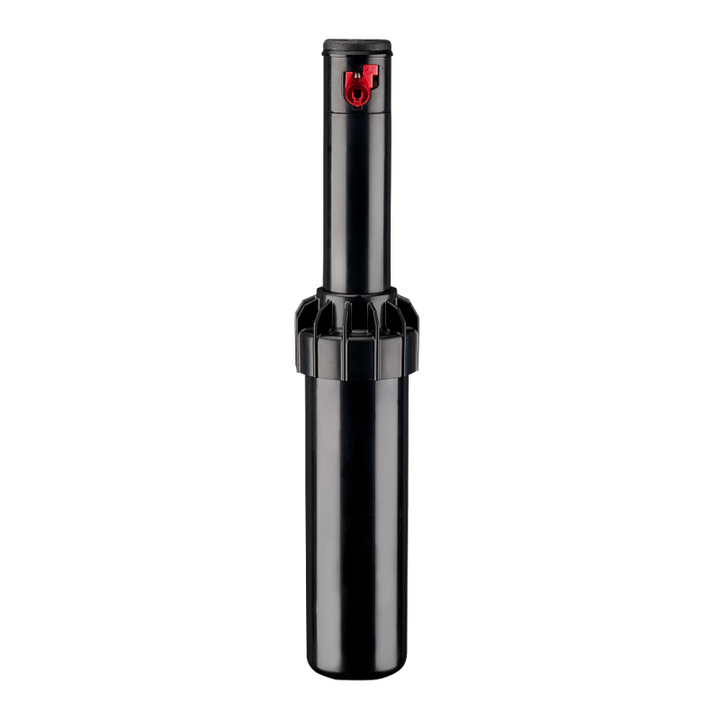

Hunter PGJ Rotor

The highly durable PGJ offers all the benefits of a large rotor in a compact, spray-sized package, with water efficient nozzles and easy arc adjustment.

Key Benefits

• 1/2" BSP Female Inlet
• Headed and slotted setscrew allows radius adjustment with a Hunter Wrench or flat-blade screwdriver
• Adjustable arc from 40° to 360° to keep water in the appropriate areas
• Standard factory-installed 2.0 nozzle speeds installation
• QuickCheck™ Arc Mechanism for fast arc adjustment

Operating Specifications

• Nozzle choices: 8
• Radius: 15' to 34'
• Flow: 0.42 to 4.3
• GPM Recommended pressure range: 30 to 50 PSI
• Operating pressure range: 20 to 100
• PSI Precipitation rate: 0.6 in/hr approximately
• Nozzle trajectory: 14° approximately
• Warranty period: 2 years

Factory-Installed Options

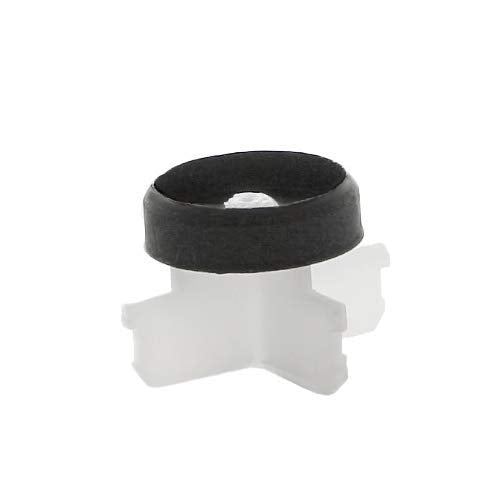

• Drain Check Valve (up to 7' of elevation) excluding PGJ-00
• Reclaimed water ID User-Installed Options Drain Check Valve (up to 7' of elevation) excluding PGJ-00 (P/N 462078SP)
• HC-50F-50M Check Valve (up to 32' of elevation)
