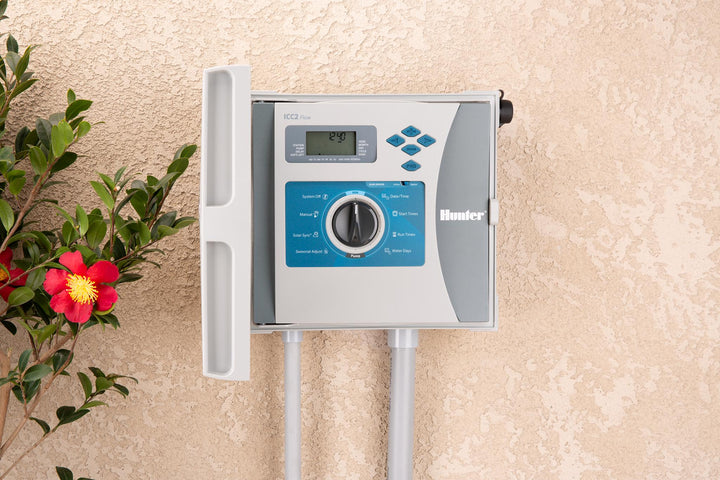

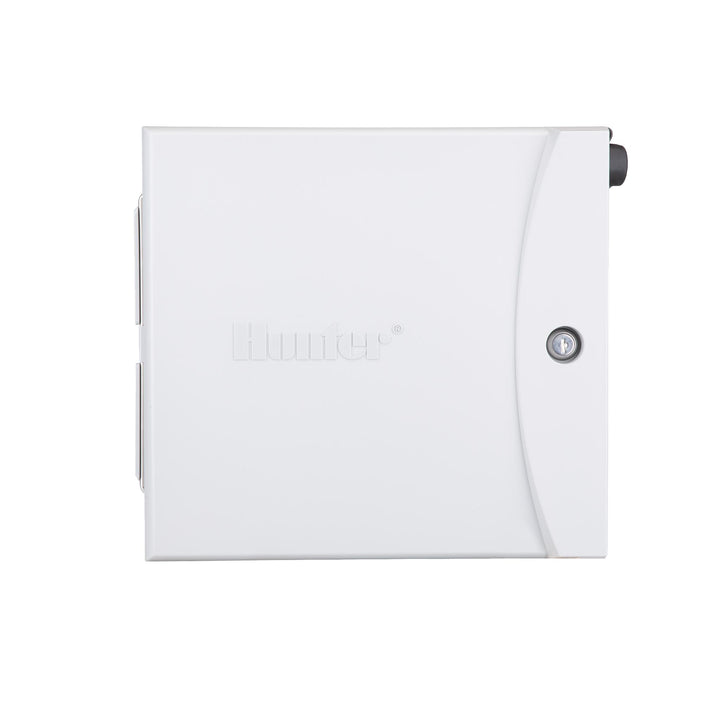

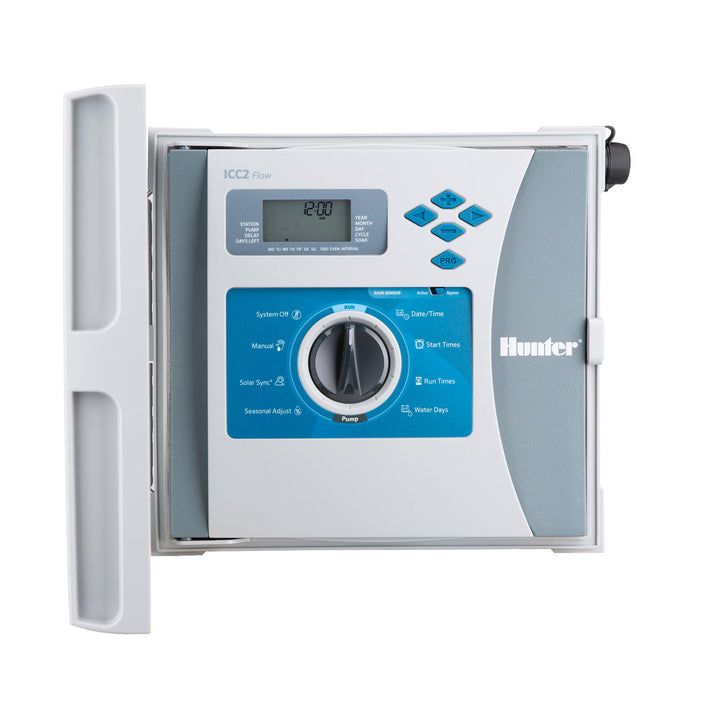

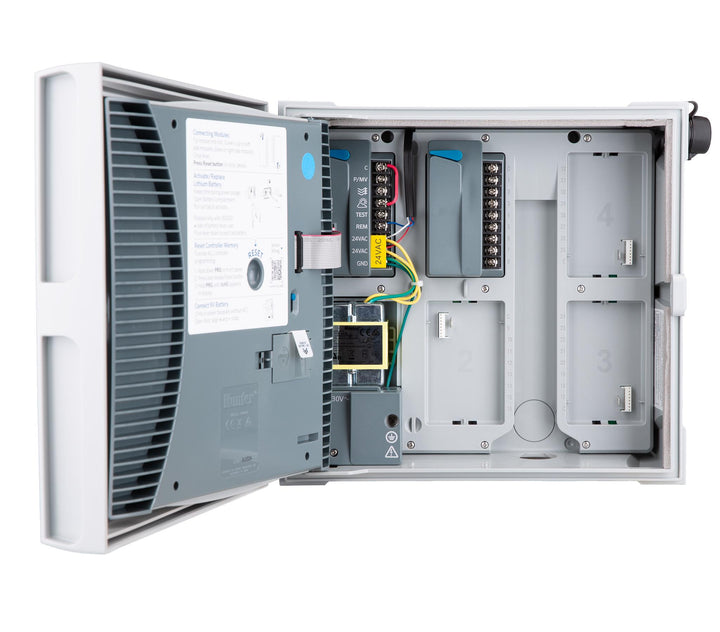

Hunter ICC2 Controller

This flexible control system can run any combination of conventional, EZDS two-wire, or Wireless Valve Link outputs with built-in flow monitoring and convenient, online control with Centralus™ Software.

Key Benefits

• 4 independent irrigation programs (8 start times each) allow for customized scheduling
• 2 sensor inputs available for dedicated flow sensor (HFS) and weather sensor (Clik or Solar Sync) connections
• Backward compatibility to original ICC Controllers allows for quick updates to older systems Forward compatibility with HCC Controllers and Hydrawise®
• Software using convenient upgrade kit 12-hour maximum station run times provide flexibility for low-flow zones
• Any 2 programs can operate simultaneously, providing more efficient watering
• 1 P/MV output for pump start relay and master valve activation
• Compatible with EZ Decoder System two-wire and Wireless Valve Link outputs in the same installation

Electrical Specifications

• Transformer input: 120/230 VAC
• Transformer output (24 VAC): 1.4 A
• Station output (24 VAC): 0.56 A P/MV output (24 VAC): 0.56 A
• Approvals: Wall Mounts IP55, Plastic Pedestal IP24, UL, cUL, FCC, CE, UKCA, RCM, ISED
• Warranty period: 5 years USER-INSTALLED OPTIONS Compatible with Hunter

User-Installed Options

• Flow-Sync® Sensor for standalone flow monitoring connections
