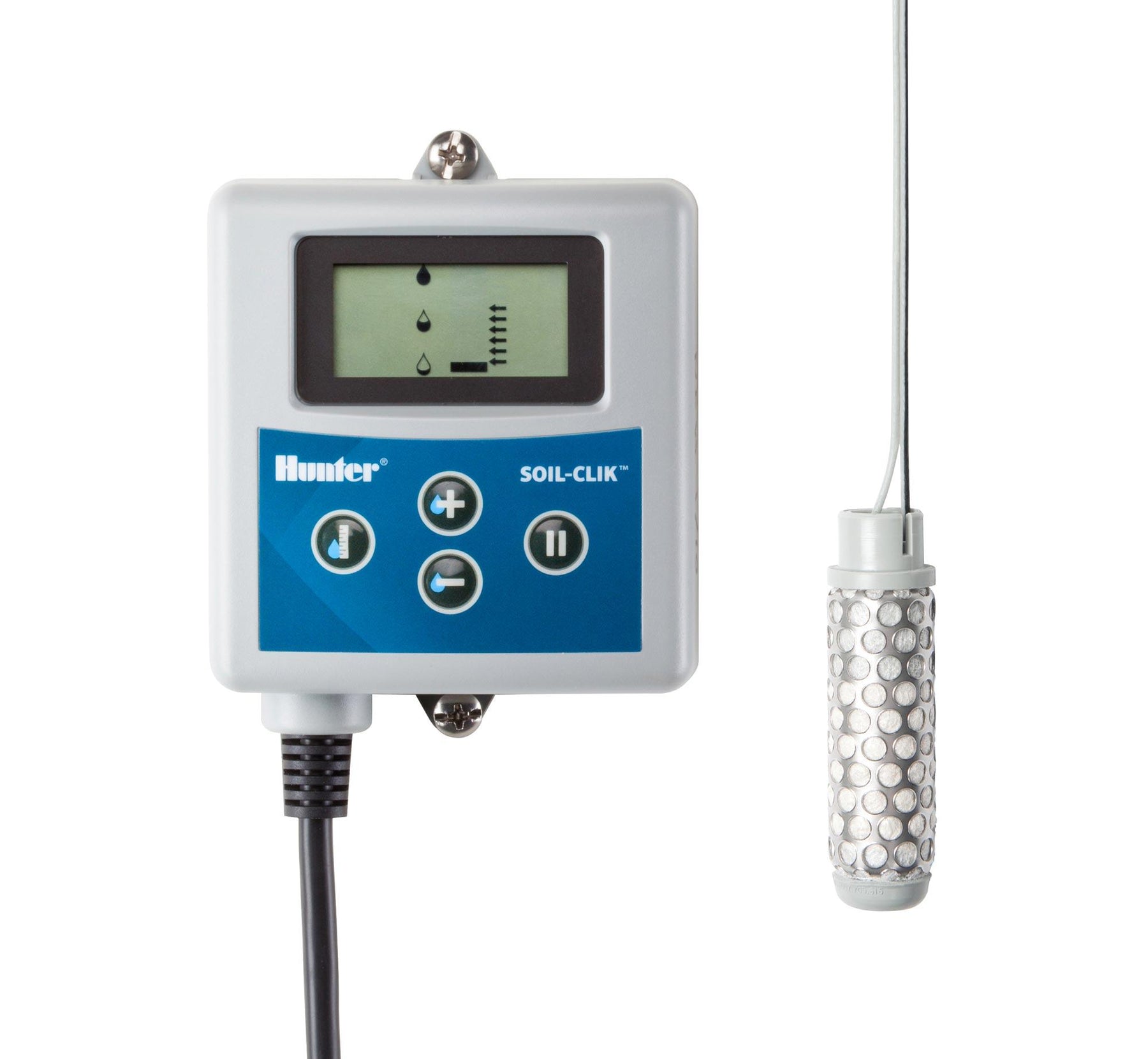

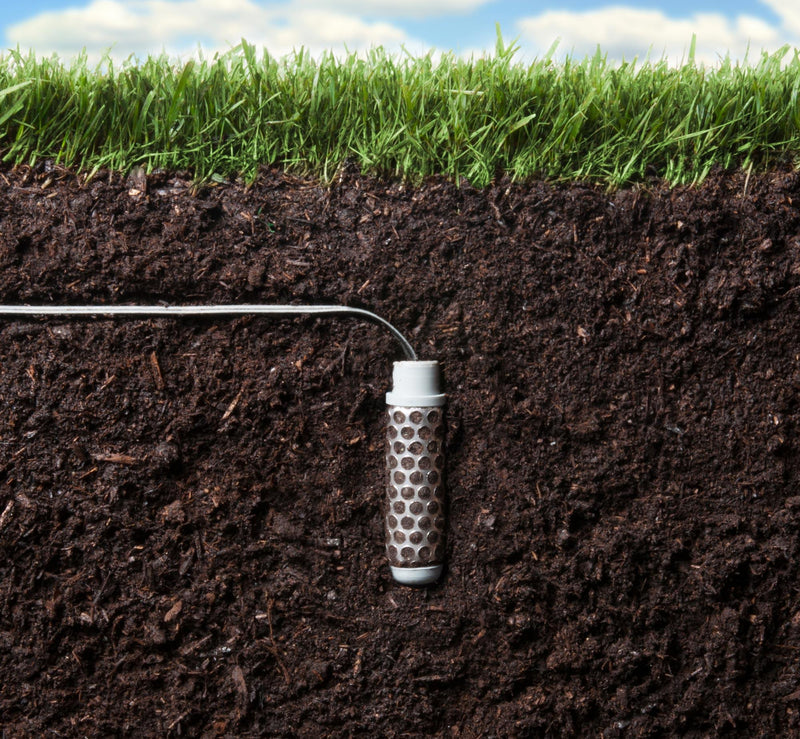

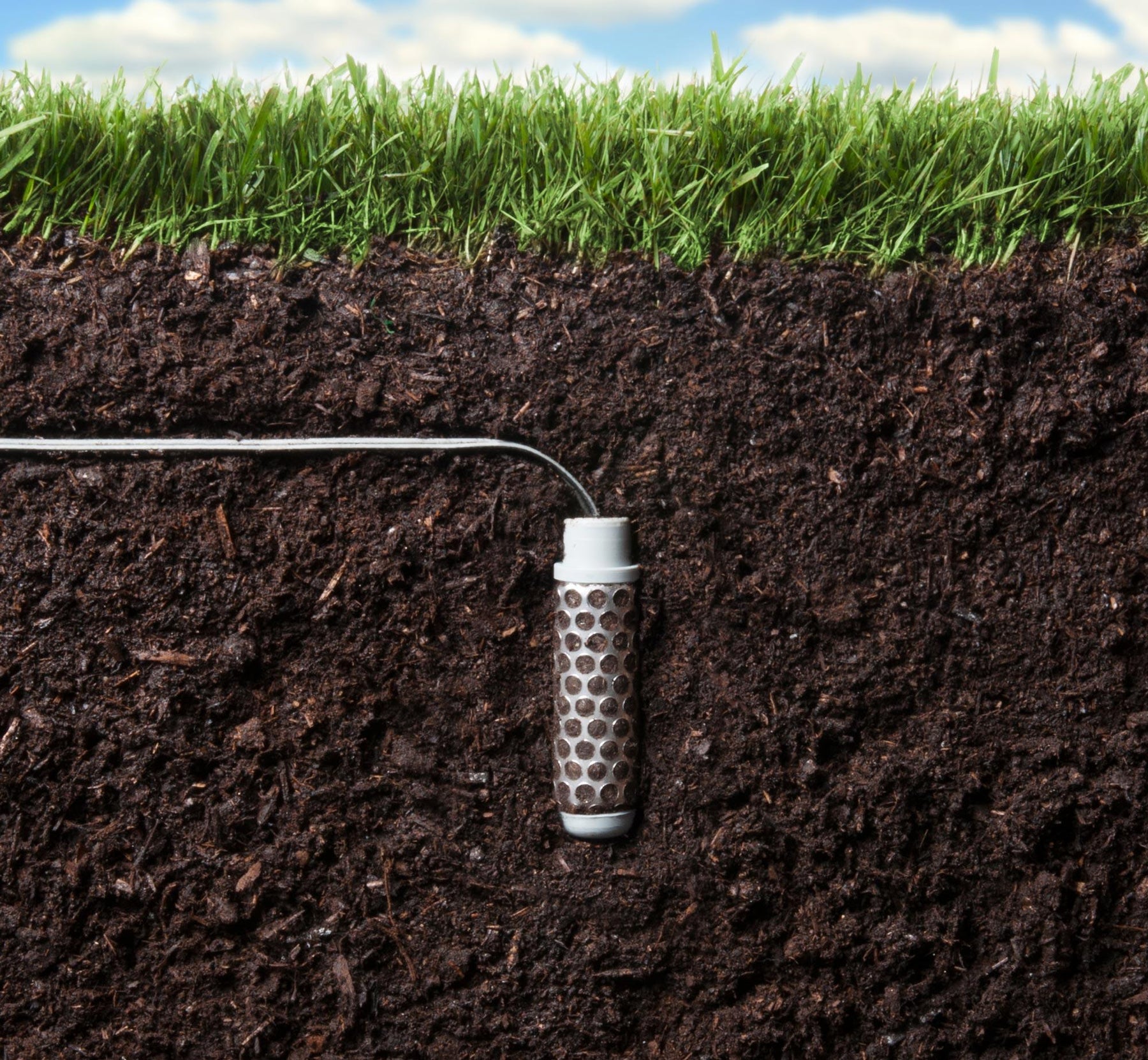

This sensor prevents water waste by measuring soil moisture and shutting off irrigation when a pre-set level is reached.

Key Benefits

• View current soil moisture level and status at a glance
• One-touch override allows soil moisture bypass for special conditions
• Low-voltage outdoor enclosure powered by host controller
• Connect to sensor inputs, or use to interrupt common wires in virtually any 24 VAC irrigation system
• Use with Solar Sync® sensor for maximum water savings

Operating Specifications

• Switch rating (24 VAC): 5 A
• Input power (24 VAC): 100 mA
• Output power: Normally closed dry-contact closure
• 6' maximum distance from Soil-Clik module to controller
• 1,000' maximum distance from Soil-Clik module to sensor probe for AC installations
• 100' maximum distance for NODE-BT installations
• Approvals: UL, cUL, FCC, CE, RCM
• Warranty period: 5 years
