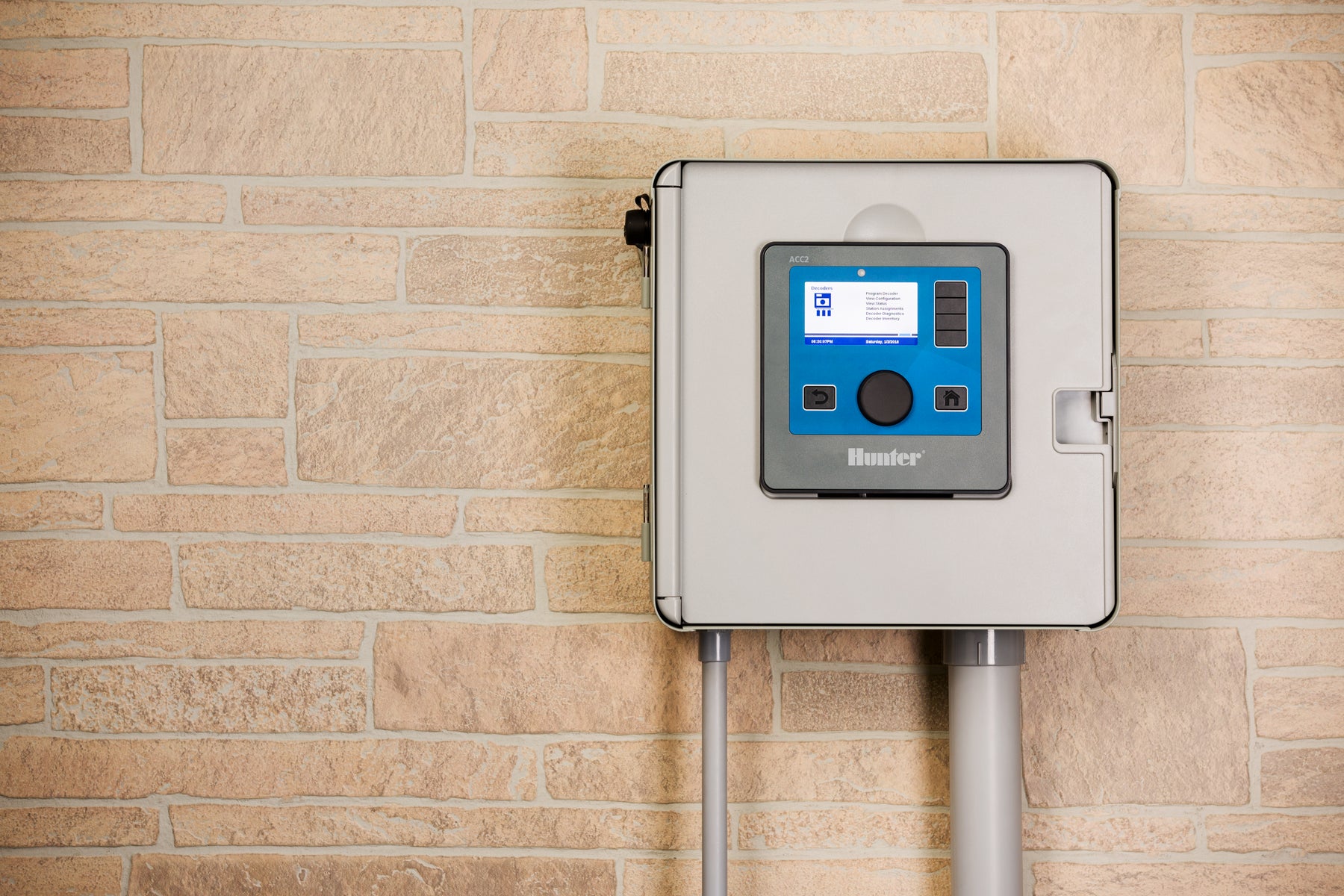

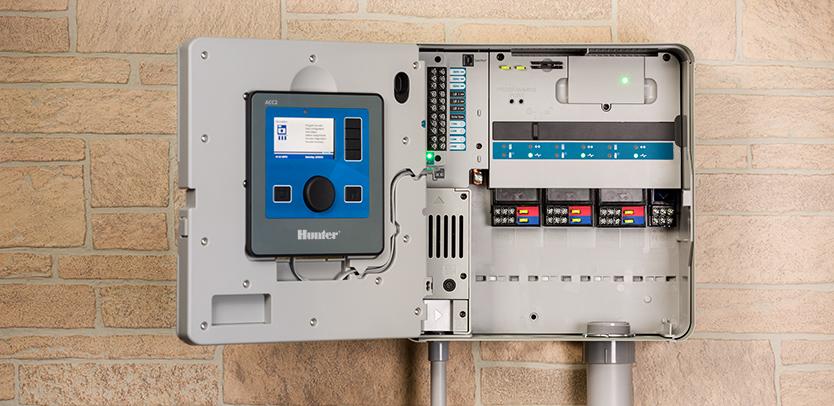

The ACC2 Decoder Controller brings intelligent, flexible, and powerful decoder control to the largest landscapes.

Key Benefits

• Number of stations: 75 to 225
• Type: Modular Decoder
• Enclosure: Outdoor metal, stainless steel, plastic pedestal
• Full-colour, high-resolution backlit display (reversible)
• Independent programs: 32 Start times per program: 10 Station run times: 15 seconds to 12 hours
• Optional Communication Modules (W-Fi, LAN, Cell)
• Real-time flow monitoring (up to 6 flow meters and flow zones)
• Up to 6 Pump/Master Valve outputs, Normally Open or Normally Closed
• Flow Management (runs flow zones to specified capacity)
• Monthly flow budgeting
• Built-in Solar Sync® logic/Solar Sync Delay feature
• SD card updates and log storage
• 12 selectable languages

Electrical Specifications

• Transformer input: 120/230 VAC, 50/60 Hz Max
• AC current draw: 120 VAC, 2 A/230 VAC, 1 A
• Transformer output: 24 VAC, 4 A
• P/MV outputs (24 VAC): Up to 6; 3 dedicated outputs with optional assignment to decoders
• Simultaneous program operation: Up to 30 (20 per output module)

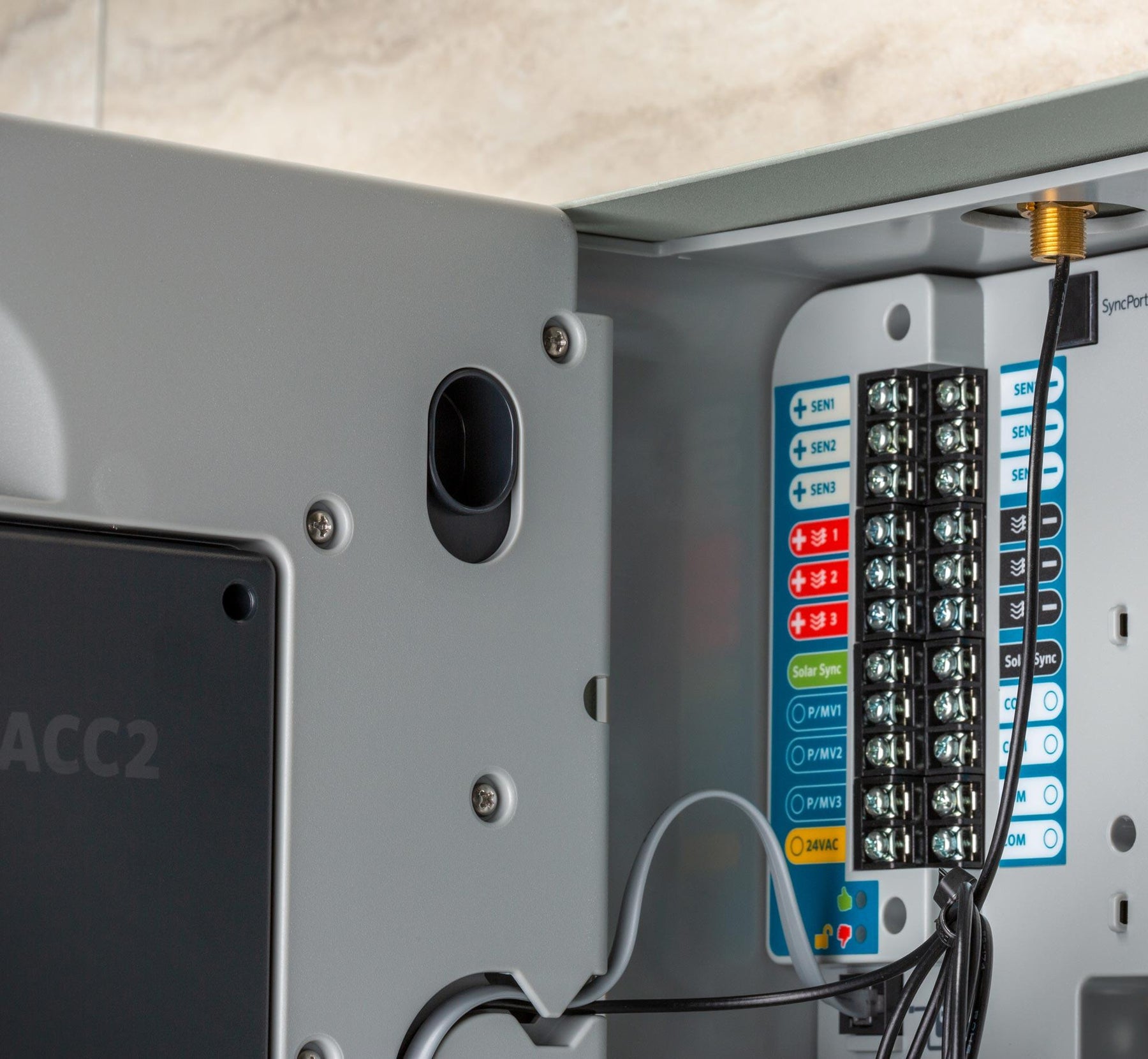

• Sensor inputs: 3 Clik, 1 Solar Sync, and 6 flow sensors

Communication Options

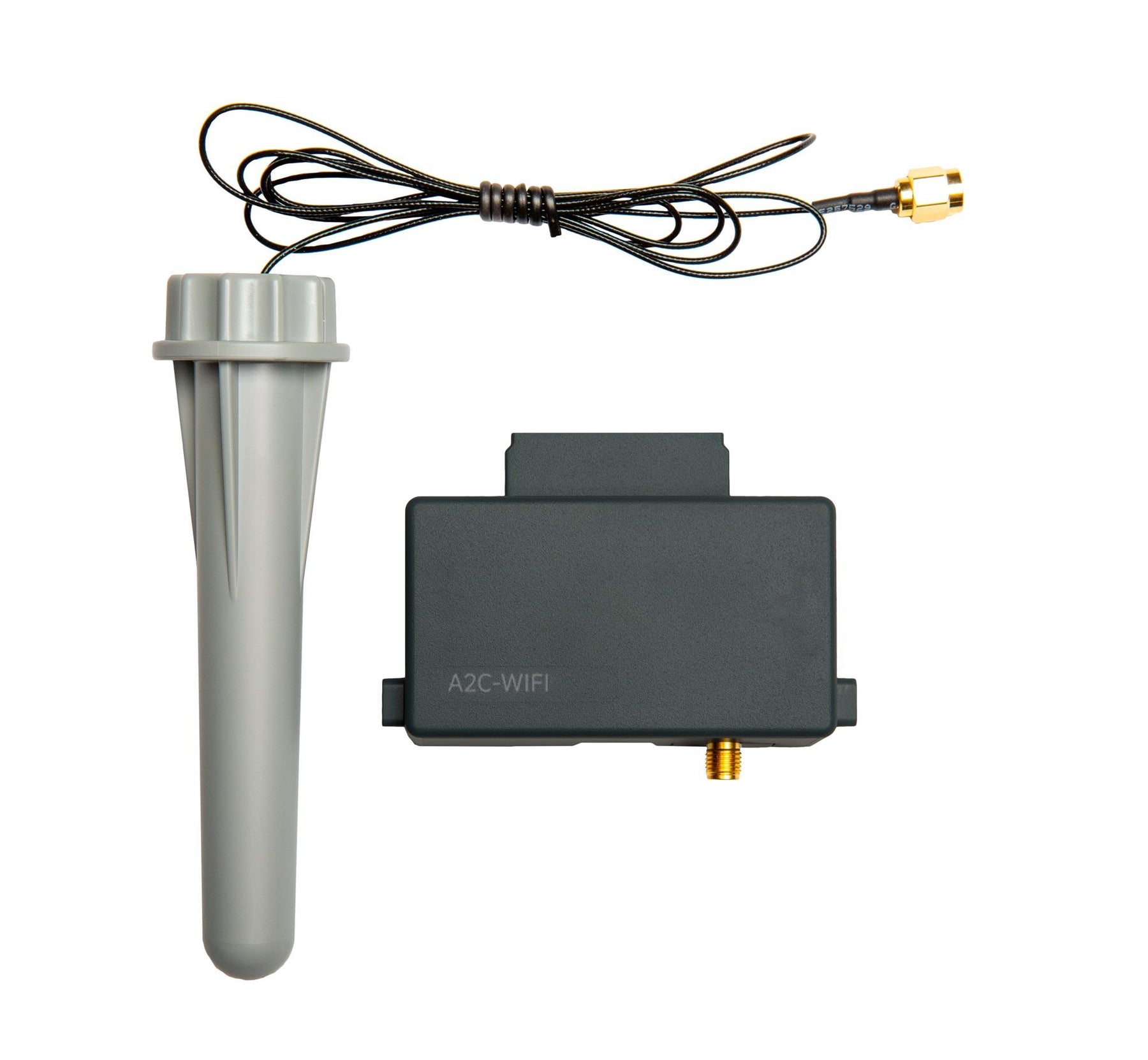

•  Wi-Fi: 2.4 GHZ, 802.11 b/g/n (antenna included)
• LAN: Ethernet with RJ-45 connection

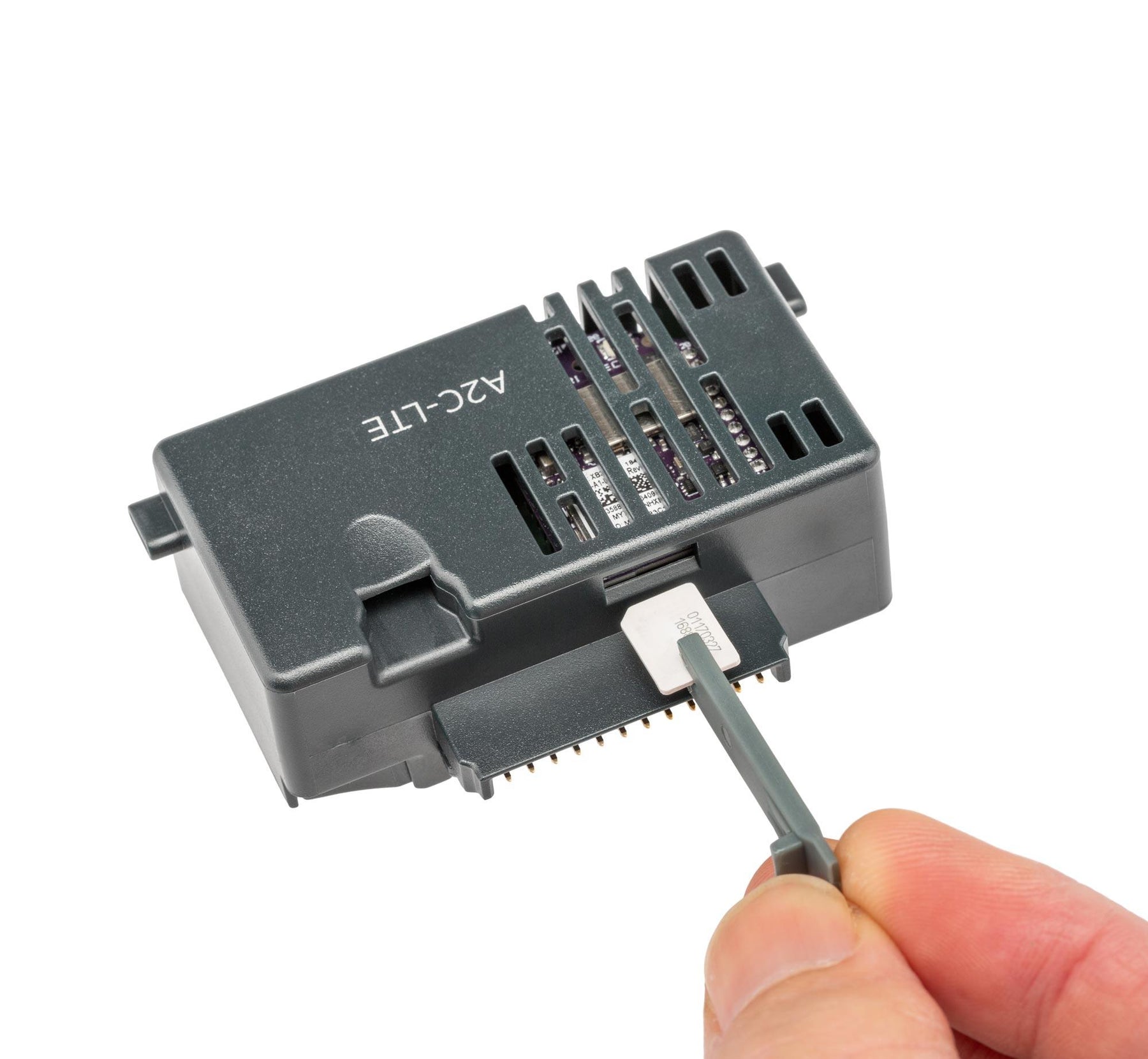

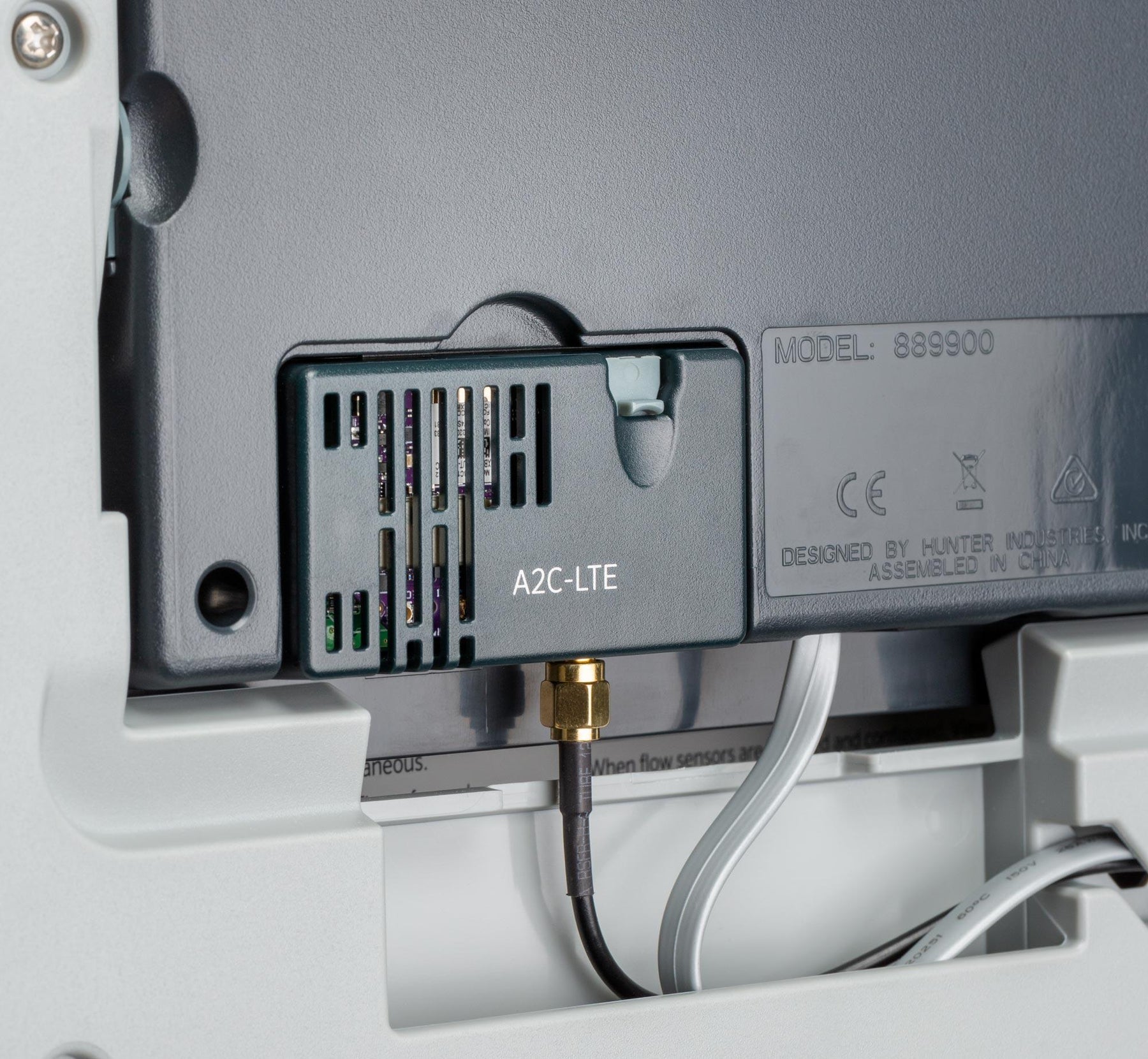

• CELL: A2C-LTEM for CATM1 and NB-IoT 4G cell service connection

Approvals

•  CE, UL, c-UL, RCM, FCC

Enclosure Rating

• Metal wall mount (includes stainless): IP44
• Plastic pedestal: IP24
